• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1968 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 106501

• • Brand: Schwer & Söhne, GmbH

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 10

• Semiconductors
• AF106 AF106 AF126 AF126 AF125 AF125 AC122 AC122 AC117 AC117 BA102 AA116 AA116 AA116

• Main principle
• Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)

• Tuned circuits
• 7 AM circuit(s)     11 FM circuit(s)

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Dry Batteries / 5 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 10 cm = 3.9 inch

• Power out
• 3.6 W (unknown quality)

• Material
• Various materials

• from Radiomuseum.org
• Model: Transatlantic Automatic 18 - SABA; Villingen

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 2550 x 1730 x 670 mm / 100.4 x 68.1 x 26.4 inch

• Notes
• Abstimmautomatic auf UKW. L-Abstimmung auf MW bei Betrieb mit Autoantenne.

• Net weight (2.2 lb = 1 kg)
• 2.6 kg / 5 lb 11.6 oz (5.727 lb)

• Source of data

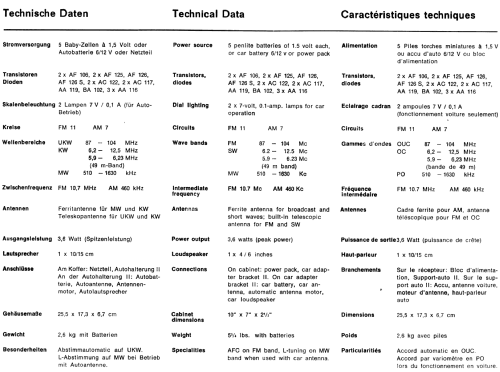

• -- Original-techn. papers.

• Author
• Model page created by Michael John. See "Data change" for further contributors.

• Other Models

• Here you find 1643 models, 1492 with images and 1176 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from SABA; Villingen
