Transeuropa III (3)
SABA; Villingen
- Country
- Germany
- Manufacturer / Brand
- SABA; Villingen
- Year
- 1965/1966
- Category
- Broadcast Receiver - or past WW2 Tuner
- Radiomuseum.org ID
- 109725
-
- Brand: Schwer & Söhne, GmbH

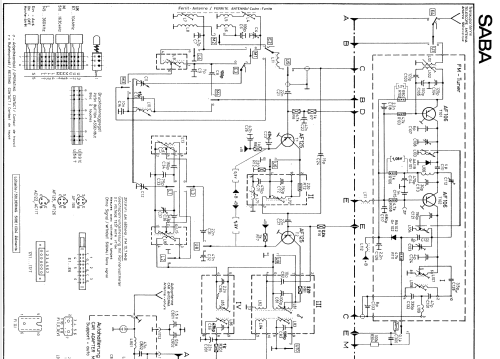

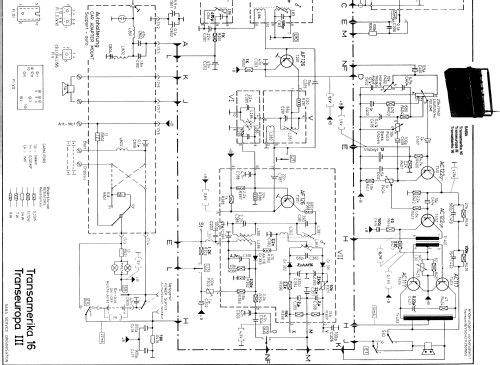

Click on the schematic thumbnail to request the schematic as a free document.
- Number of Transistors
- 10
- Main principle
- Superheterodyne (common); ZF/IF 460/10700 kHz; 3 AF stage(s)
- Tuned circuits
- 7 AM circuit(s) 11 FM circuit(s)
- Wave bands
- Broadcast, Long Wave and FM or UHF.
- Power type and voltage
- Dry Batteries / 5 × 1,5 Volt
- Loudspeaker
- Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
- Power out
- 3.6 W (unknown quality)
- Material
- Plastics (no bakelite or catalin)
- from Radiomuseum.org
- Model: Transeuropa III - SABA; Villingen
- Shape
- Portable set > 8 inch (also usable without mains)
- Dimensions (WHD)
- 255 x 175 x 65 mm / 10 x 6.9 x 2.6 inch
- Notes
- Gerät ist äußerlich ähnlich Transamerika 16 und Transatlantic 16.
- Net weight (2.2 lb = 1 kg)
- 2.6 kg / 5 lb 11.6 oz (5.727 lb)
- Mentioned in
- -- Original-techn. papers.
- Author
- Model page created by Walter Groer. See "Data change" for further contributors.
