Transeuropa automatic K

Transeuropa automatic K; SABA; Villingen (ID = 285761) Radio

Transeuropa automatic K; SABA; Villingen (ID = 285762) Radio

Transeuropa automatic K; SABA; Villingen (ID = 285763) Radio

Transeuropa automatic K; SABA; Villingen (ID = 285764) Radio

Transeuropa automatic K; SABA; Villingen (ID = 285765) Radio

Transeuropa automatic K; SABA; Villingen (ID = 285766) Radio

Transeuropa automatic K; SABA; Villingen (ID = 285767) Radio

Transeuropa automatic K; SABA; Villingen (ID = 1801218) Radio

Transeuropa automatic K; SABA; Villingen (ID = 1801219) Radio

Transeuropa automatic K; SABA; Villingen (ID = 1801220) Radio
Transeuropa automatic K; SABA; Villingen (ID = 351301) Radio Transeuropa automatic K; SABA; Villingen (ID = 351303) Radio
Transeuropa automatic K; SABA; Villingen (ID = 351304) Radio Transeuropa automatic K; SABA; Villingen (ID = 285768) Radio
Transeuropa automatic K; SABA; Villingen (ID = 351302) Radio Transeuropa automatic K; SABA; Villingen (ID = 351305) Radio
Transeuropa automatic K; SABA; Villingen (ID = 351307) Radio Transeuropa automatic K; SABA; Villingen (ID = 351308) Radio
Transeuropa automatic K; SABA; Villingen (ID = 351309) Radio Transeuropa automatic K; SABA; Villingen (ID = 351310) Radio
Use red slider bar for more.
Transeuropa automatic K; SABA; Villingen (ID = 351301) Radio

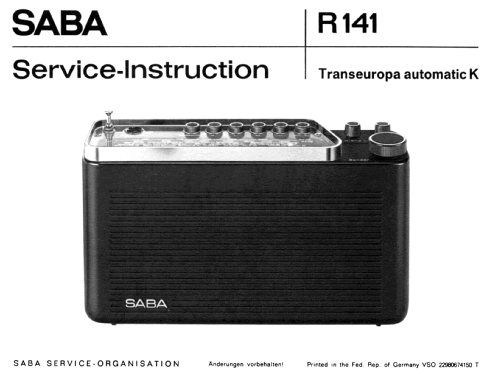

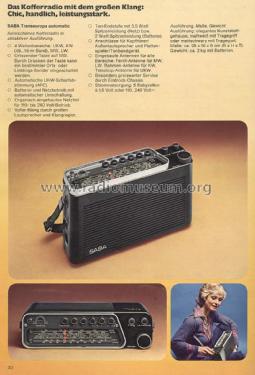

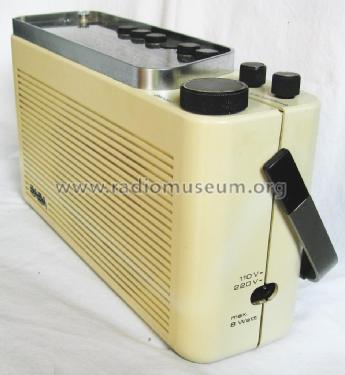

SABA; Villingen: Transeuropa automatic K [Radio] ID = 351301 731x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Transeuropa automatic K, SABA; Villingen

Country:  Germany
Manufacturer / Brand:  SABA; Villingen
Brand

Schwer & Söhne, GmbH
Year: 1974–1977 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 15: MPS-H07 BF224 BF450 BF240 BF451 BC239 or. BC173 BC308 or. BC252 BC238 or. BC172 AC187 AC188 BD509 1N4148 BB103 AA119 1N4001 ZPY10
Main principle Superheterodyne (common); ZF/IF 460/10700 kHz
Tuned circuits 5 AM circuit(s)     8 FM circuit(s)
Wave bands Broadcast, Long Wave, Short Wave plus FM or UHF.
Details
Power type and voltage Line / Batteries (any type) / 110; 220 / 5×1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) - elliptical
Power out 2 W (unknown quality)
from Radiomuseum.org Model: Transeuropa automatic K - SABA; Villingen
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 285 x 160 x 80 mm / 11.2 x 6.3 x 3.1 inch
Notes

Halbleiter teils mehrfach vorhanden.

NF-Ausgangsleistung bei Netzbetrieb: 3,5 W. MW-Festsender mit getrenntem Drehkondensator von oben in Skala einstellbar. Ausführung mattweiß oder mattschwarz mit Tragegurt.Verkauf über die Weltfunk anlässlich der Funkausstellung 1975

Frequenzen:

UKW: 87,5 - 104 MHz
KW: 5800 - 18500 kHz
MW: 510 - 1630 kHz
LW: 145 - 260 kHz

Net weight (2.2 lb = 1 kg) 2 kg / 4 lb 6.5 oz (4.405 lb)
External source of data Erb
Source of data Katalog RFP 1974
Mentioned in Handbuch VDRG 1975/1976 (und 1976/77)
Literature/Schematics (1) -- Original-techn. papers.


All listed radios etc. from SABA; Villingen
Here you find 1564 models, 1424 with images and 1046 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.





rmXorg
