• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1975 ??

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 201800

• • Brand: Schwer & Söhne, GmbH

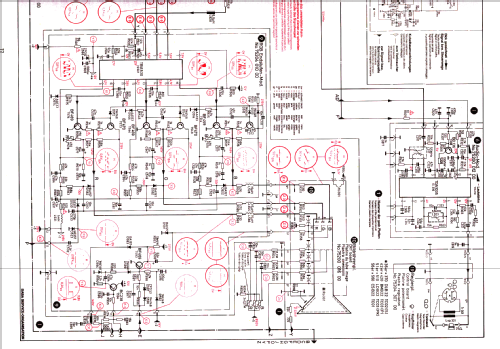

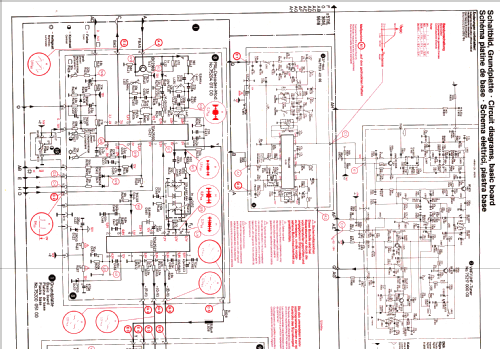

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 420BMB22-TC03

• Number of Transistors
• Semiconductors present.

• Semiconductors
• BC237 BC238 BC307 BC308 BC328 BC337 BF199 BRX45 BRX49 MPS-A17 BU208 BU326 S408T MJ900 MJ1000 BD135 BD136 BD176 BF459 BF460 BF469 BF470 BF472 BR303 TBA530 TDA2590 or. TDA2591 TDA440 TDA2522 TDA2560 TDA1035 TDA1170

• Main principle
• Superheterodyne (common)

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Power type and voltage
• Alternating Current supply (AC) / 200-250 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Various materials

• from Radiomuseum.org
• Model: Ultracolor electronic CM P4226 - SABA; Villingen

• Shape
• Tablemodel, with any shape - general.

• Notes
• • Saba Color TV
  • 42 cm Bildröhre
  • VHF/UHF Tuner

• Mentioned in
• Original Saba Service Unterlagen

• Author
• Model page created by Josef Pilz. See "Data change" for further contributors.
