• Country
• Germany

• Manufacturer / Brand
• SABA; Villingen

• Year
• 1984–1989

• Category
• Television Receiver (TV) or Monitor

• Radiomuseum.org ID
• 327064

• • Brand: Schwer & Söhne, GmbH

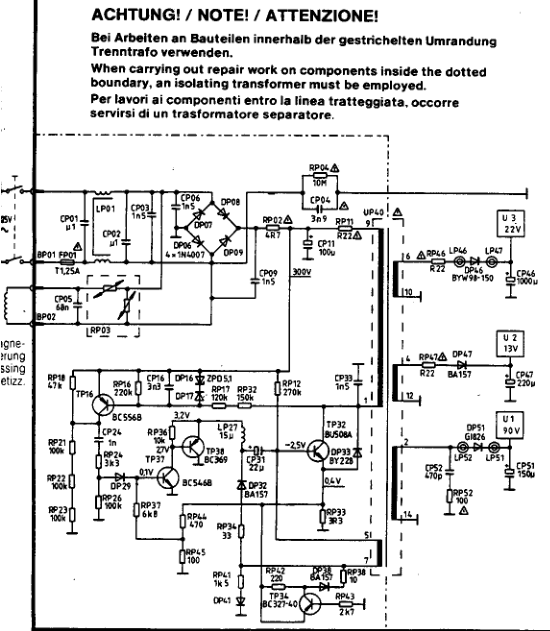

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 1

• Valves / Tubes
• 420EDB22A

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superhet with RF-stage

• Wave bands
• VHF incl. FM and/or UHF (see notes for details)

• Details
• Remote Control (with wire or wireless)

• Power type and voltage
• Alternating Current supply (AC) / 50Hz, 220-240 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: Ultracolor Telecommander P42 SC42 Ch= ICC4 - SABA; Villingen

• Shape
• Tablemodel, low profile (big size).

• Dimensions (WHD)
• 500 x 360 x 410 mm / 19.7 x 14.2 x 16.1 inch

• Notes

• Chassis ICC4

• Net weight (2.2 lb = 1 kg)
• 16 kg / 35 lb 3.9 oz (35.242 lb)

• Mentioned in
• -- Original prospect or advert (1984/85 und 1989)

• Author
• Model page created by Alexander Schmitz. See "Data change" for further contributors.
