• Country
• Germany

• Manufacturer / Brand
• Sachsenwerk (bis 1945) ESWE

• Year
• 1926–1929

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 6484

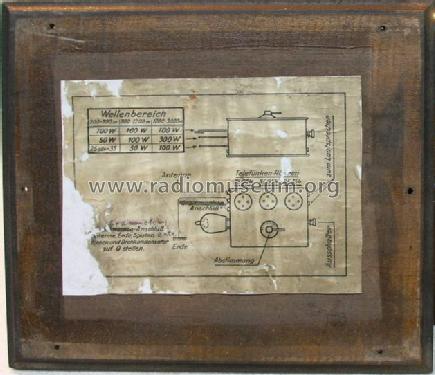

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Tubes
• 3

• Valves / Tubes
• RE054 RE054 RE154

• Main principle
• TRF with regeneration; 2 AF stage(s)

• Tuned circuits
• 1 AM circuit(s)

• Wave bands
• Broadcast (MW) and Long Wave.

• Power type and voltage
• Storage and/or dry batteries

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case, TUBES VISIBLE.

• from Radiomuseum.org

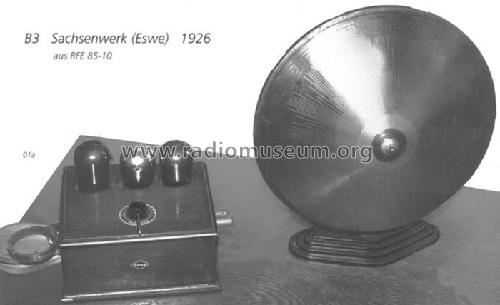

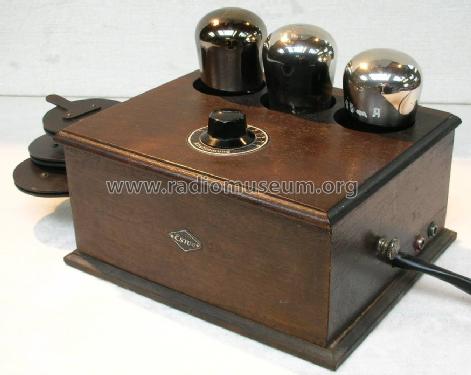

• Model: Eswe B3 - Sachsenwerk bis 1945 ESWE

• Shape
• Tablemodel, Box - most often with Lid (NOT slant panel).

• Dimensions (WHD)
• 185 x 100 x 155 mm / 7.3 x 3.9 x 6.1 inch

• Notes
• 3fach Spulenkoppler seitlich.

• Source of data
• Radiokatalog Band 1, Ernst Erb

• Circuit diagram reference
• Röhren in FS-Bestückungstabellen

• Mentioned in
• Der Radio-Händler / Der Rundfunk-Händler (ab Jan. 1939) (2920)

• Picture reference
• Das Modell ist im «Radiokatalog» (Erb) abgebildet.

• Other Models

• Here you find 168 models, 144 with images and 107 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
  All listed radios etc. from Sachsenwerk (bis 1945) ESWE
