102-A

102-A; SAICA marca (ID = 2007337) Radio 102-A; SAICA marca (ID = 2007338) Radio
102-A; SAICA marca (ID = 2007339) Radio 102-A; SAICA marca (ID = 2007340) Radio
102-A; SAICA marca (ID = 2007341) Radio
Use red slider bar for more.
102-A; SAICA marca (ID = 2007337) Radio

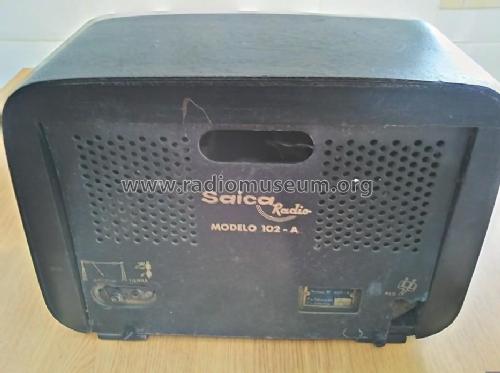

SAICA marca: 102-A [Radio] ID = 2007337 933x697
Select picture or schematic to display from thumbnails on the right and click for download.
For model 102-A, SAICA (marca)

Country:  Spain
Manufacturer / Brand:  SAICA (marca)
Year: 1955 ? Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 5: unknown_Tube unknown_Tube EBC90 unknown_Tube unknown_Tube
Main principle Superheterodyne (common); ZF/IF 435 kHz
Wave bands Broadcast, Short Wave(s) and Police.
Details
Power type and voltage Alternating Current supply (AC) / 125 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 13 cm = 5.1 inch
Power out
from Radiomuseum.org Model: 102-A - SAICA marca
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 370 x 260 x 200 mm / 14.6 x 10.2 x 7.9 inch
Net weight (2.2 lb = 1 kg) 5.4 kg / 11 lb 14.3 oz (11.894 lb)

Model page created by Jose Luis Espinosa Gonzalez. See "Data change" for further contributors.



All listed radios etc. from SAICA (marca)
Here you find 2 models, 2 with images and 0 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
