Amplificador de B.F. 1 W sin transformadores SK-10 (1970)

Sales-Kit; Barcelona

  • Year
  • 1970
  • Category
  • Kit (Parts plus instruction) or building instructions only
  • Radiomuseum.org ID
  • 271226

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 5
  • Wave bands
  • - without
  • Power type and voltage
  • Dry Batteries / 2 x 4,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
  • Power out
  • 1 W (undistorted)
  • from Radiomuseum.org
  • Model: Amplificador de B.F. 1 W sin transformadores SK-10 - Sales-Kit; Barcelona
  • Notes
  • Amplificador ideal para una maleta tocadiscos portátil.

    Se añade el año al modelo porque Sales-Kit usaba el mismo número para kits diferentes fabricados en diferentes años.

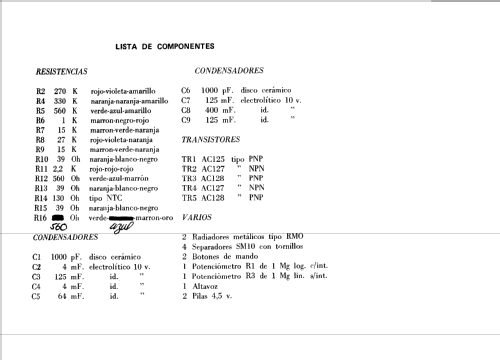

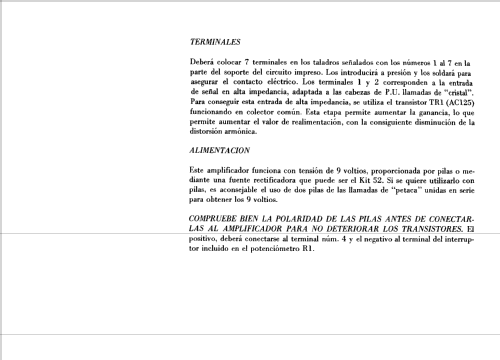

  • Literature/Schematics (1)
  • -- Original-techn. papers.
  • Author
  • Model page created by Miguel Bravo-Cos. See "Data change" for further contributors.
