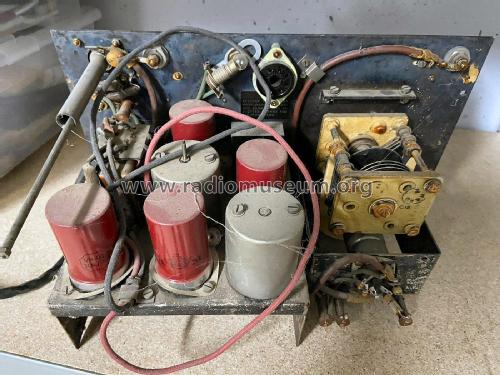

Wavemeter W1649; Salford Electrical (ID = 2491826) Military Wavemeter W1649; Salford Electrical (ID = 2491827) Military
Wavemeter W1649; Salford Electrical (ID = 2491828) Military
Use red slider bar for more.
Wavemeter W1649; Salford Electrical (ID = 2491826) Military
Salford Electrical: Wavemeter W1649 [Military] ID = 2491826 1400x897
Select picture or schematic to display from thumbnails on the right and click for download.
For model Wavemeter W1649, Salford Electrical Instruments Ltd; Salford:
photo kindly sent in by Fred van Mierlo, Netherlands.

Country:  Great Britain (UK)
Manufacturer / Brand:  Salford Electrical Instruments Ltd; Salford
Year: 1944 Category: Military Equipment (not Re, Tr or RXT)
Valves / Tubes 4: VR135 VR91 VR91 VR91 VR91
Wave bands Wave Bands given in the notes.
Details
Power type and voltage Batteries / addl. power jack / 6, 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Wavemeter W1649 - Salford Electrical Instruments
Notes

The W1649 is a VHF heterodyne wavemeter that can also be used as a signal generator.

The IF is 15 MHz, tunable -2 MHz to +3 MHz.
Wavemeter range 155-255 MHz. Accuracy +-0.2 MHz.
Signal Generator range 140-240 MHz. Accuracy +-0.5 MHz below 220 MHz.
The harmonics of a 5 MHz +- 0.01% crystal oscillator provide check points throughout the range.

The valve complement is:
VR135 (selected) Main oscillator
VR91 Mixer
VR91 Crystal oscillator
VR91 Detector
VR91 Output

The unit also contains one spare selected VR135

Power supplies:
LT 3x2v accumulators
HT 120v
A special Type 633 power supply unit that fits in the place of the HT battery allows the wavemeter to be operated from any of the following mains supplies:
80v 400-2000 Hz
110v 60 Hz
115v 400-2000 Hz
180v 500 Hz
230v 50 or 400 Hz

Mentioned in Manufacturer's documentation
