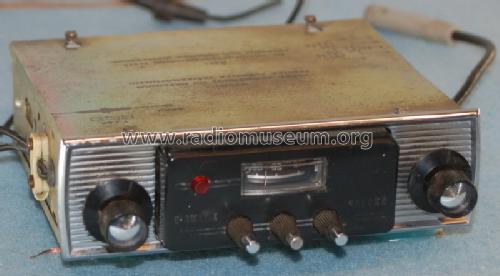

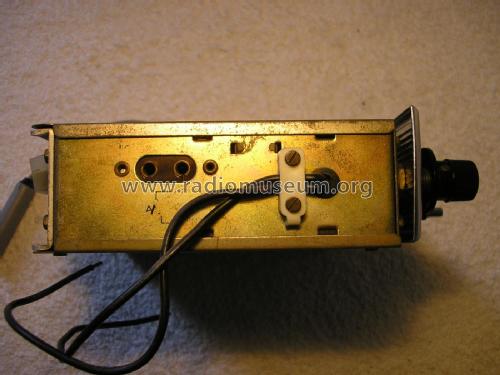

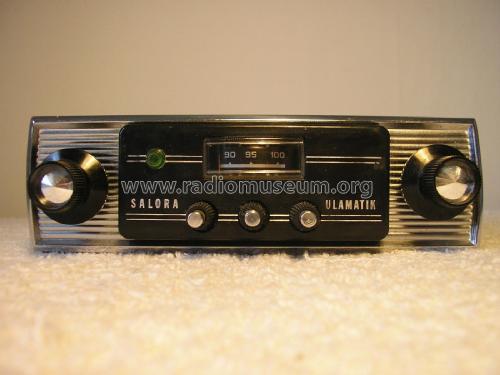

Auto-Ulamatik

Salora; Salo

  • Year
  • 1966
  • Category
  • Car Radio, perhaps also + sound player/recorder
  • Radiomuseum.org ID
  • 110550

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 18
  • Semiconductors
  • Main principle
  • Superhet, double/triple conversion; ZF/IF 10700/6500 kHz; 4 AF stage(s)
  • Tuned circuits
  • 10 FM circuit(s)
  • Wave bands
  • FM Broadcast Band Only
  • Power type and voltage
  • Storage Battery for all (e.g. for car radios and amateur radios) / 6; 12 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 5 W (unknown quality)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Auto-Ulamatik - Salora; Salo
  • Shape
  • Chassis only or for «building in»
  • Dimensions (WHD)
  • 170 x 160 x 50 mm / 6.7 x 6.3 x 2 inch
  • Notes
  • Automatic station search and 2 station presets. Varicap tuning. Audio op 8 W/12 V.
  • Net weight (2.2 lb = 1 kg)
  • 1.4 kg / 3 lb 1.3 oz (3.084 lb)
  • Price in first year of sale
  • 380.00 FIM
  • Source of data
  • - - Data from my own collection
  • Author
  • Model page created by Ake Nyholm. See "Data change" for further contributors.
