• Country
• Finland

• Manufacturer / Brand
• Salora; Salo

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 97340

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 9

• Semiconductors

• Main principle
• Superheterodyne (common); ZF/IF 468 kHz; 3 AF stage(s)

• Tuned circuits
• 6 AM circuit(s)     6 FM circuit(s)

• Wave bands
• Broadcast, Long Wave and FM or UHF.

• Power type and voltage
• Dry Batteries / 6 × 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 inch = 10.2 cm

• Power out
• 0.4 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

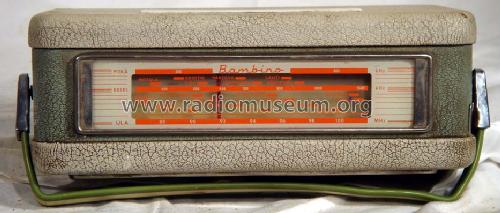

• Model: Bambino T6 - Salora; Salo

• Shape
• Portable set > 8 inch (also usable without mains)

• Net weight (2.2 lb = 1 kg)
• 2.5 kg / 5 lb 8.1 oz (5.507 lb)

• Price in first year of sale
• 295.00 FIM

• Literature/Schematics (1)
• -- Schematic

• Author
• Model page created by Ake Nyholm. See "Data change" for further contributors.
