Flagg 2 H34

Flagg 2 H34; Salve Staubo A/S; (ID = 413109) Radio
Use red slider bar for more.
Flagg 2 H34; Salve Staubo A/S; (ID = 413109) Radio

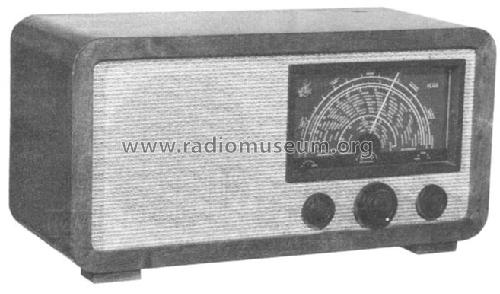

Salve Staubo A/S;: Flagg 2 H34 [Radio] ID = 413109 657x387
Select picture or schematic to display from thumbnails on the right and click for download.
For model Flagg 2 H34, Salve Staubo A/S; Oslo
Country:  Norway
Manufacturer / Brand:  Salve Staubo A/S; Oslo
Year: 1948–1950 Category: Broadcast Receiver - or past WW2 Tuner
Valves / Tubes 4: DK32 DF33 DAC32 DL35
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave and 2 x Short Wave.
Power type and voltage Storage and/or dry batteries / 90 & 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 18 cm = 7.1 inch
Power out
from Model: Flagg 2 H34 - Salve Staubo A/S; Oslo
Material Wooden case
Shape Tablemodel, with any shape - general.
Dimensions (WHD) 530 x 270 x 230 mm / 20.9 x 10.6 x 9.1 inch
Price in first year of sale 335.00 NKr
Mentioned in The Norwegian Historical Radio Society

Model page created by Ernst Rykkje. See "Data change" for further contributors.
