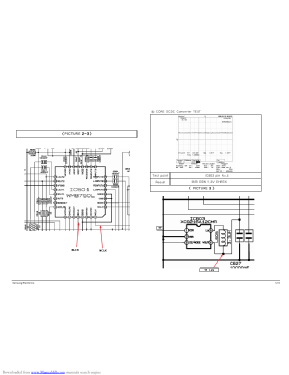

Click on the schematic thumbnail to request the schematic as a free document.
Number of Transistors
PLL, Phase-locked loop
FM Broadcast Band Only
HD or solid state memory
Power type and voltage
Line plus power jack, mostly with battery or storage battery / Lion: 4,2 Volt
- For headphones or amp.
Plastics (no bakelite or catalin)

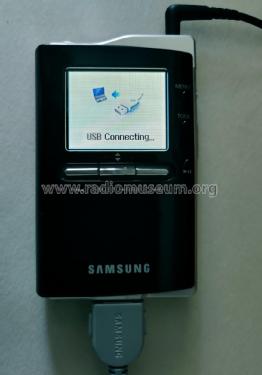

Model: Portable Digital Audio Player YH-J70SB/SW [20GB] - Samsung Co.; Daegu
Very small Portable or Pocket-Set (Handheld) < 8 inch.
62 x 99.8 x 16.4 mm / 2.4 x 3.9 x 0.6 inch
The YH-J70SB/SW is a 20GB hard drive MP3 player with a few unique features that help distinguish it from the generic iPod copies we so often see. The device includes line-in recording, a built-in FM tuner, video/photo playback as well as 18 equalisation pre-set modes.
Also available as a 30 GB version, Model YH-J70LB/LW.
