Analyzer Type 4 E772

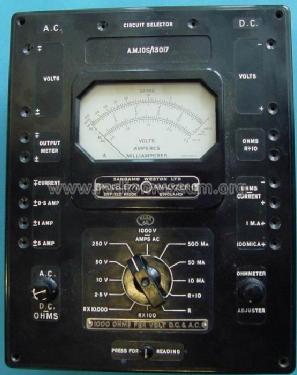

Analyzer Type 4 E772; Sangamo Weston (ID = 158236) Equipment Analyzer Type 4 E772; Sangamo Weston (ID = 158237) Equipment
Analyzer Type 4 E772; Sangamo Weston (ID = 158238) Equipment Analyzer Type 4 E772; Sangamo Weston (ID = 1756744) Equipment
Use red slider bar for more.
Analyzer Type 4 E772; Sangamo Weston (ID = 158236) Equipment
Sangamo Weston: Analyzer Type 4 E772 [Equipment] ID = 158236 496x700
Select picture or schematic to display from thumbnails on the right and click for download.
For model Analyzer Type 4 E772, Sangamo Weston Limited; Enfield (Middlesex)

Country:  Great Britain (UK)
Manufacturer / Brand:  Sangamo Weston Limited; Enfield (Middlesex)
Year: 1943 Category: Service- or Lab Equipment
Wave bands - without
Details
Power type and voltage Dry Batteries / 1.5; 9 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Analyzer Type 4 E772 - Sangamo Weston Limited;
Material Various materials
Shape Miscellaneous shapes - described under notes.
Dimensions (WHD) 205 x 270 x 100 mm / 8.1 x 10.6 x 3.9 inch
Notes Bakelite front, steel case, wooden carrying case. Batteries: 1,5V = Ever Ready size "R" or Siemens type "S". 9V = Ever Ready "Winner" or Siemens type "CG2". There is also a "valve testing accessory".
Source of data -- Original-techn. papers.

Model page created by Georg Richter. See "Data change" for further contributors.



All listed radios etc. from Sangamo Weston Limited; Enfield (Middlesex)
Here you find 3 models, 3 with images and 1 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
