• Country
• Taiwan (Republic of China)

• Manufacturer / Brand
• Sangean; Chung Ho City

• Year
• 1998

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 78942

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast, Short Wave plus FM or UHF.

• Power type and voltage
• Batteries / addl. power jack / 4 × 1,5 / 6 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 2.5 inch = 6.4 cm

• Power out
• 0.3 W (unknown quality)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org

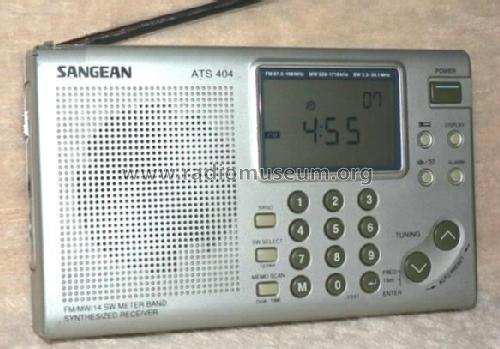

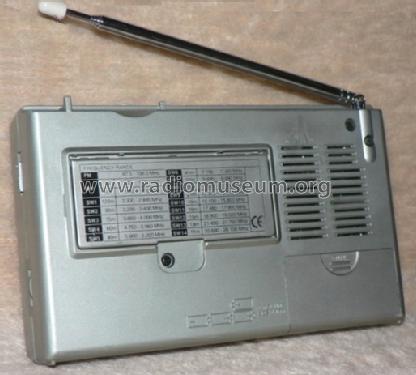

• Model: ATS-404 - Sangean; Chung Ho City

• Shape
• Very small Portable or Pocket-Set (Handheld) < 8 inch.

• Dimensions (WHD)
• 165 x 101 x 35 mm / 6.5 x 4 x 1.4 inch

• Notes
• Shortwave coverage 2300 - 26100 kHz, digital readout, 45 memories, clock/timer. Same as the Panasonic RF-B33.

• Net weight (2.2 lb = 1 kg)
• 0.4 kg / 0 lb 14.1 oz (0.881 lb)

• Price in first year of sale
• 68.00 EUR

• Author
• Model page created by Martin Bösch. See "Data change" for further contributors.
