ATS-505

ATS-505; Sangean; Chung Ho (ID = 1086994) Radio ATS-505; Sangean; Chung Ho (ID = 1086995) Radio
ATS-505; Sangean; Chung Ho (ID = 1086996) Radio ATS-505; Sangean; Chung Ho (ID = 1086998) Radio

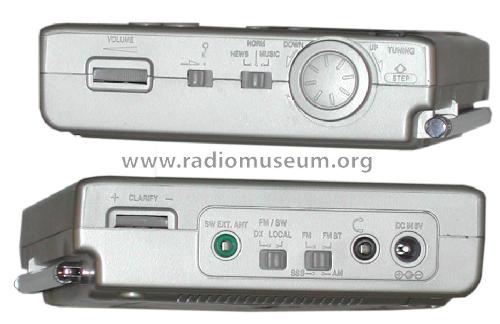

ATS-505; Sangean; Chung Ho (ID = 1086999) Radio ATS-505; Sangean; Chung Ho (ID = 1087001) Radio

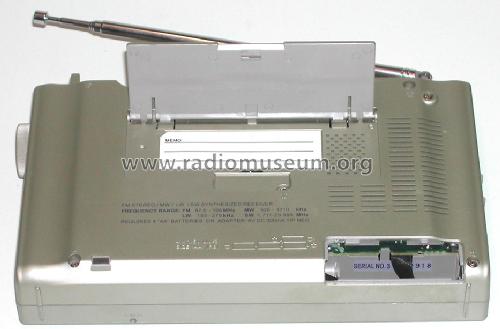

ATS-505; Sangean; Chung Ho (ID = 1087000) Radio ATS-505; Sangean; Chung Ho (ID = 1086997) Radio

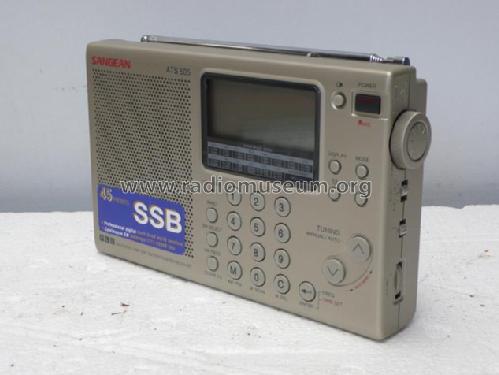

ATS-505; Sangean; Chung Ho (ID = 109155) Radio ATS-505; Sangean; Chung Ho (ID = 1681059) Radio
Use red slider bar for more.
ATS-505; Sangean; Chung Ho (ID = 1086994) Radio
Sangean; Chung Ho: ATS-505 [Radio] ID = 1086994 933x610

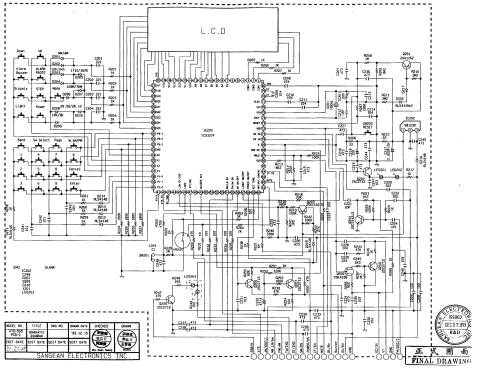

Select picture or schematic to display from thumbnails on the right and click for download.
For model ATS-505, Sangean; Chung Ho City

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Sangean; Chung Ho City
Year: 1999 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast, Long Wave, more than 2 x SW plus FM or UHF.
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 7.6 cm = 3 inch
Power out 0.35 W (unknown quality)
from Radiomuseum.org Model: ATS-505 - Sangean; Chung Ho City
Material Modern plastics (no Bakelite or Catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 214 x 128 x 39 mm / 8.4 x 5 x 1.5 inch
Notes shortwave coverage 1711 - 29999 kHz, AM /SSB (BFO), digital readout, 45 memories, clock / timer.
Net weight (2.2 lb = 1 kg) 0.8 kg / 1 lb 12.2 oz (1.762 lb)
Price in first year of sale 130.00 $

Model page created by Martin Bösch. See "Data change" for further contributors.
