Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C

Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C; Sangean; Chung Ho (ID = 1933250) DIG/SAT Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C; Sangean; Chung Ho (ID = 1933251) DIG/SAT
Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C; Sangean; Chung Ho (ID = 1933252) DIG/SAT Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C; Sangean; Chung Ho (ID = 1933253) DIG/SAT
Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C; Sangean; Chung Ho (ID = 2038948) DIG/SAT Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C; Sangean; Chung Ho (ID = 2038947) DIG/SAT
Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C; Sangean; Chung Ho (ID = 2041555) DIG/SAT
Use red slider bar for more.

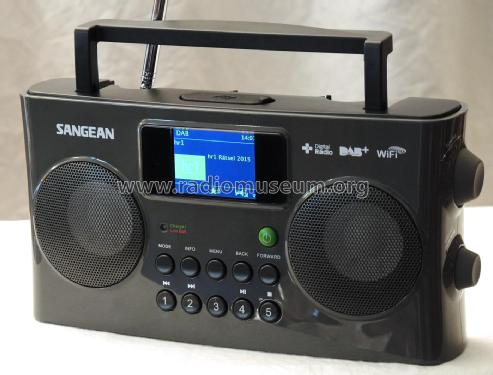

Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C; Sangean; Chung Ho (ID = 1933250) DIG/SAT
Sangean; Chung Ho: Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C [DIG/SAT] ID = 1933250 1400x1063
Select picture or schematic to display from thumbnails on the right and click for download.
For model Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C, Sangean; Chung Ho City

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Sangean; Chung Ho City
Year: 2014 Category: Digital terrestrial, Internet and SAT receiver (also analogue)
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle DSP, Digital Signal Processor
Wave bands DAB and FM, perhaps with Streaming [DABFM]
Details
Power type and voltage Batteries / addl. power jack / C: 6 x 1.5 or NiCd 6 x 1.2 / 12 Volt
Loudspeaker 2 Loudspeakers / Ø 6.5 cm = 2.6 inch
Power out 2 W (undistorted)
from Radiomuseum.org Model: Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C - Sangean; Chung Ho City
Material Plastics (no bakelite or catalin)
Shape Portable set > 8 inch (also usable without mains)
Dimensions (WHD) 270 x 140 x 75 mm / 10.6 x 5.5 x 3 inch
Notes

Das Sangean Internet Radio/DAB+/FM RDS/USB Digital Receiver WFR-29C ist ein tragbarer Empfänger für Internet-Radio (Streaming), DAB/DAB+ und UKW-FM mit RDS-Funktionen. Über einen UPnP Server auf einem Windows-Netzwerk-PC (oder Mac) kann auf dort liegende Audiodateien zugegriffen werden.

Empfangsbereiche/Frequency Ranges:

  • WiFi: 2.4 GHz / 5 GHz
  • FM: 87.5 - 108 MHz (50 kHz steps)

Kanal/Channel Block:

  • DAB/DAB+ : 5A - 13F (174.928 - 239.200 MHz)

Unterstützte Audio-Codecs / max. Bitrate:

  • AAC (LC) / 320 kbit/s
  • MP3 / 320 kbit/s
  • Real Audio / 64 kbit/s
  • WAV / 1.536 Mbit/s
  • WMA (3) / 320 kbit/s

Ausgangsleistung: 2x 1W
Kopfhörer-Anschluss: 3.5 mm, Stereo
AUX-Eingang (Line-in): 3.5 mm, Stereo
Line-Ausgang: 3.5 mm, Stereo

Batteriebetrieb über Alkalibatterien, eingesetzte NiCd-Zellen werden im Gerät aufgeladen.
Ext. Stromversorgung über mitgeliefertes Schaltnetzteil 12 V/1A

Leistungsaufnahme ab Netz: 4.2W (on), 2,3W (Stby)
Stromaufnahme ab Batterie: 0,38A etwa 3,5W (!); 0.1 mA (Stby)

Net weight (2.2 lb = 1 kg) 1.350 kg / 2 lb 15.6 oz (2.974 lb)
Mentioned in - - Manufacturers Literature

Model page created by Bernhard Nagel. See "Data change" for further contributors.
