WR-2

WR-2; Sangean; Chung Ho (ID = 2068600) Radio WR-2; Sangean; Chung Ho (ID = 2069188) Radio
WR-2; Sangean; Chung Ho (ID = 2069189) Radio WR-2; Sangean; Chung Ho (ID = 2069190) Radio
WR-2; Sangean; Chung Ho (ID = 2069191) Radio WR-2; Sangean; Chung Ho (ID = 2069192) Radio
Use red slider bar for more.
WR-2; Sangean; Chung Ho (ID = 2068600) Radio
Sangean; Chung Ho: WR-2 [Radio] ID = 2068600 1400x789
Select picture or schematic to display from thumbnails on the right and click for download.
For model WR-2, Sangean; Chung Ho City

Country:  Taiwan (Republic of China)
Manufacturer / Brand:  Sangean; Chung Ho City
Year: 2014 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Super-Heterodyne (Super in general)
Wave bands Broadcast (BC) and FM or UHF.
Details Radio Control (+Remote Wire etc)
Power type and voltage Line plus power jack, mostly with battery or storage battery / 120 VAC / 12 DC Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 3 inch = 7.6 cm
Power out 7 W (undistorted)
from Radiomuseum.org Model: WR-2 - Sangean; Chung Ho City
Material Wooden case
Shape Tablemodel with Clock ((Alarm-) Clock Radio).
Dimensions (WHD) 9.45 x 4.41 x 7.61 inch / 240 x 112 x 193 mm
Notes

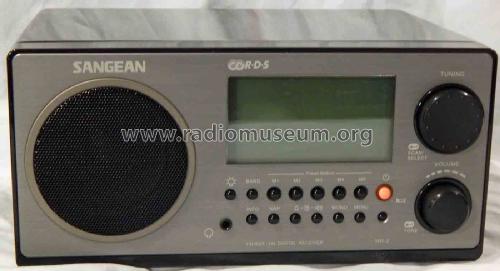

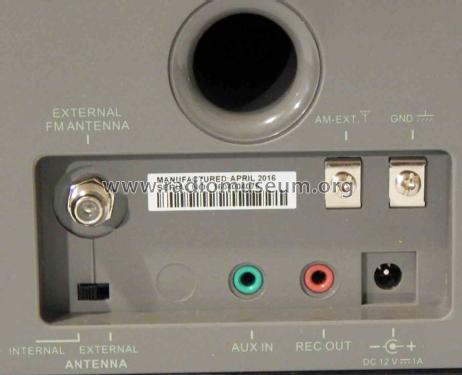

The Sangean WR-2 is a tabletop AM/FM digital receiver.  It has RDS (Radio Data System). It includes internal AM and FM antennas with jacks for external antennas, plus 3.5 mm headphone jack, 5 AM and 5 FM memories, and a DC In (center pin positive) for 12 V.

The wood cabinet comes in several colors, including wood grain, black and white. There is also a clear acrylic version. (Apparently, the clear model is designed for prison inmates, so objects cannot be hidden in the cabinet.)

The receiver comes with remote control (CR2025 battery included), AC cord, wire FM antenna and manual.

Net weight (2.2 lb = 1 kg) 5 lb 10.6 oz (5.663 lb) / 2.571 kg
Price in first year of sale 129.95 USD

Model page created by Wayne Childress. See "Data change" for further contributors.
