Galaxie Transistor Six SP-660
Use red slider bar for more.

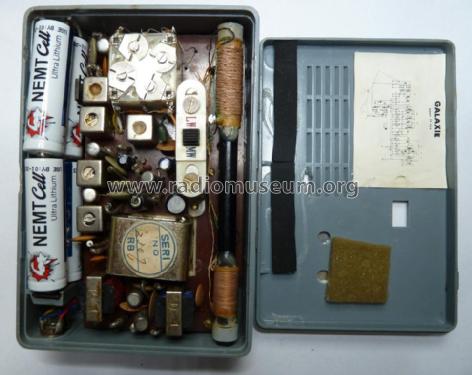

Sanritsu Electric Co: Galaxie Transistor Six SP-660 [Radio] ID = 2566535 894x768
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1962 ? | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: |
|---|
| Main principle | Superheterodyne (common); ZF/IF 455 kHz |
|---|---|
| Tuned circuits | 5 AM circuit(s) |
| Wave bands | Broadcast (MW) and Long Wave. |
| Details | |
| Power type and voltage | Storage and/or dry batteries / AA: 4 x 1.5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 6 cm = 2.4 inch |
| Power out | |
| from Radiomuseum.org | Model: Galaxie Transistor Six SP-660 - Sanritsu Electric Co., Japan |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 126 x 86 x 38 mm / 5 x 3.4 x 1.5 inch |
| Notes | Simillar to Overseas Spiket SP660. Da Gerät ist baugleich mit dem Overseas Spiket SP660 nur die Halbleiterbestückung ist geändert. Made in Okinawa |
| Net weight (2.2 lb = 1 kg) | 0.250 kg / 0 lb 8.8 oz (0.551 lb) |
Model page created by Ingolf Pabst. See "Data change" for further contributors.
