Sanritz - Transistor Six 6A-4

Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1307282) Radio Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1307283) Radio
Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1307284) Radio Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1307285) Radio
Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1307286) Radio Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1307287) Radio
Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1307288) Radio Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1307289) Radio
Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1889807) Radio
Use red slider bar for more.
Sanritz - Transistor Six 6A-4; Sanritsu Electric Co (ID = 1307282) Radio
Sanritsu Electric Co: Sanritz - Transistor Six 6A-4 [Radio] ID = 1307282 933x1323
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sanritz - Transistor Six 6A-4, Sanritsu Electric Co., Japan Transformer Works, Sanritz; Tokyo

Country:  Japan
Manufacturer / Brand:  Sanritsu Electric Co., Japan Transformer Works, Sanritz; Tokyo
Year: 1963 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / LR1: 3 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Sanritz - Transistor Six 6A-4 - Sanritsu Electric Co., Japan
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 60 x 80 x 23 mm / 2.4 x 3.1 x 0.9 inch
Notes

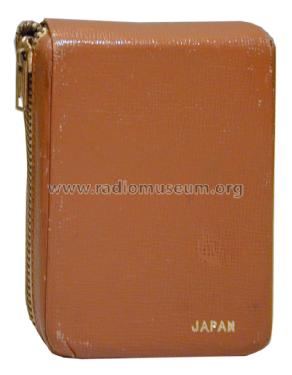

Sanritz Mini 6 Transistorradio 6A-4 with leather case by zipper.

Required batteries: 3x LR1 (other designations are N, MN9100, Lady, E90)

Net weight (2.2 lb = 1 kg) 0.130 kg / 0 lb 4.6 oz (0.286 lb)

Model page created by Eckhard Wegner. See "Data change" for further contributors.



All listed radios etc. from Sanritsu Electric Co., Japan Transformer Works, Sanritz; Tokyo
Here you find 34 models, 29 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
