Sanritz ST-6Z

Sanritz ST-6Z; Sanritsu Electric Co (ID = 332170) Radio Sanritz ST-6Z; Sanritsu Electric Co (ID = 332171) Radio
Sanritz ST-6Z; Sanritsu Electric Co (ID = 332169) Radio Sanritz ST-6Z; Sanritsu Electric Co (ID = 332172) Radio
Sanritz ST-6Z; Sanritsu Electric Co (ID = 332173) Radio Sanritz ST-6Z; Sanritsu Electric Co (ID = 1736081) Radio
Use red slider bar for more.
Sanritz ST-6Z; Sanritsu Electric Co (ID = 332170) Radio
Sanritsu Electric Co: Sanritz ST-6Z [Radio] ID = 332170 640x480
Select picture or schematic to display from thumbnails on the right and click for download.
For model Sanritz ST-6Z, Sanritsu Electric Co., Japan Transformer Works, Sanritz; Tokyo

Country:  Japan
Manufacturer / Brand:  Sanritsu Electric Co., Japan Transformer Works, Sanritz; Tokyo
Year: 1964 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common); ZF/IF 455 kHz; 3 AF stage(s)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 3 × 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) / Ø 4 cm = 1.6 inch
Power out 0.1 W (unknown quality)
from Radiomuseum.org Model: Sanritz ST-6Z - Sanritsu Electric Co., Japan
Material Plastics (no bakelite or catalin)

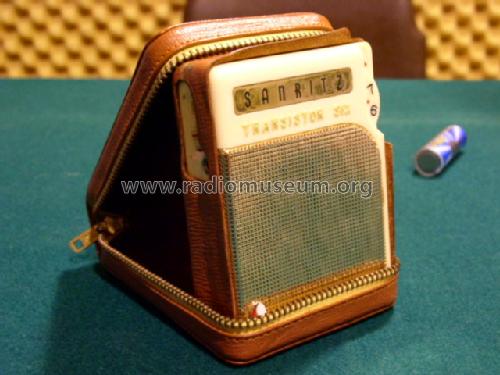

Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 60 x 80 x 23 mm / 2.4 x 3.1 x 0.9 inch

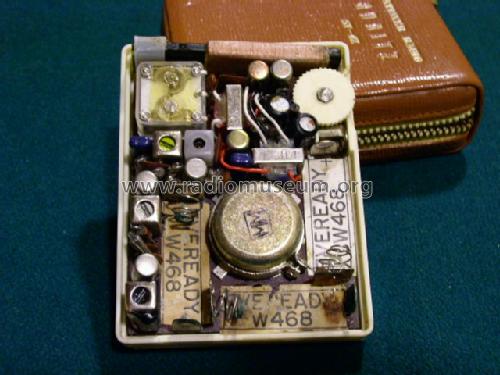

Notes It use three eveready w468 cells (almost 2/3 AAA size) batteries.
Usa tre batterie eveready w468 (dimensioni circa 2/3 di una microstilo AAA).
Mentioned in - - Data from my own collection

Model page created by Enrico Bonisolo. See "Data change" for further contributors.
