Spica SP600

Spica SP600; Sanritsu Electric Co (ID = 761205) Radio Spica SP600; Sanritsu Electric Co (ID = 761206) Radio
Spica SP600; Sanritsu Electric Co (ID = 761207) Radio
Use red slider bar for more.
Spica SP600; Sanritsu Electric Co (ID = 761205) Radio
Sanritsu Electric Co: Spica SP600 [Radio] ID = 761205 640x349
Select picture or schematic to display from thumbnails on the right and click for download.
For model Spica SP600, Sanritsu Electric Co., Japan Transformer Works, Sanritz; Tokyo

Country:  Japan
Manufacturer / Brand:  Sanritsu Electric Co., Japan Transformer Works, Sanritz; Tokyo
Year: 1960 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6:
Main principle Superheterodyne (common)
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / 4 x 1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out
from Radiomuseum.org Model: Spica SP600 - Sanritsu Electric Co., Japan
Material Modern plastics (no Bakelite or Catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 125 x 85 x 40 mm / 4.9 x 3.3 x 1.6 inch
Notes Spica SP600 portable transistor radio.

Model page created by Angelo Daniele. See "Data change" for further contributors.



All listed radios etc. from Sanritsu Electric Co., Japan Transformer Works, Sanritz; Tokyo
Here you find 32 models, 29 with images and 5 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.






Forum contributions about this model
Sanritsu Electric Co: Spica SP600
Threads: 1 | Posts: 1
Hits: 1632     Replies: 0
sanritz: SP600 mit abweichendem Drehkondensator
Joachim Gittel
11.Dec.12
  1

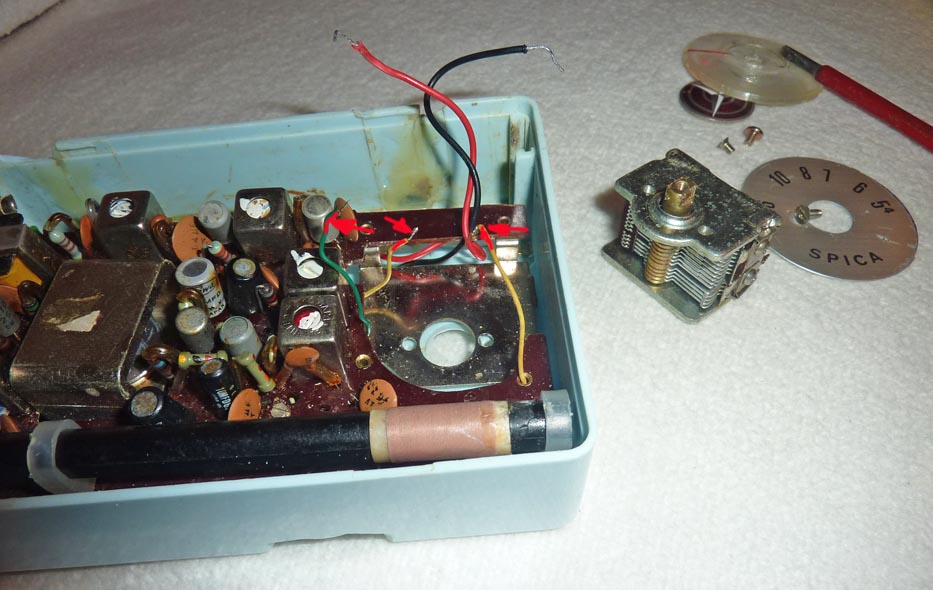

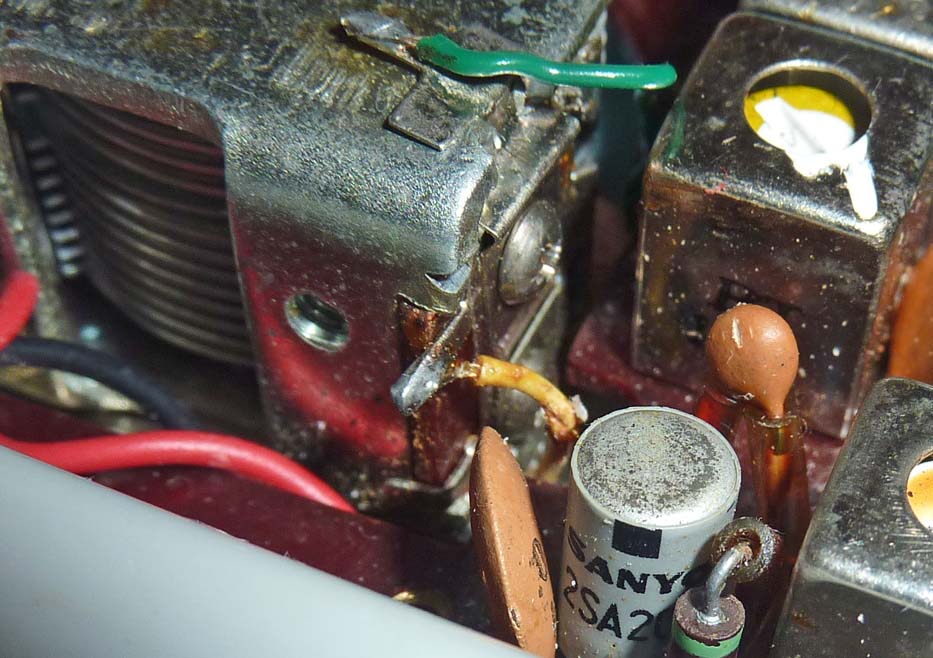

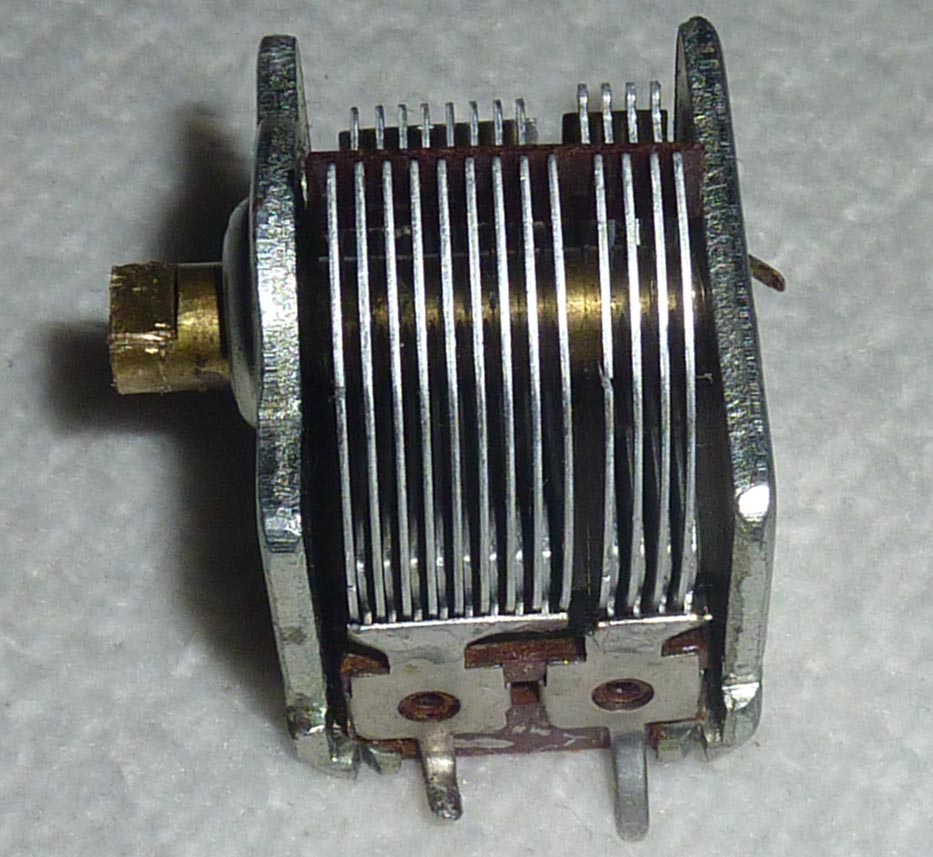

Die Bilder zeigen meinen Spica Modell SP600 mit einem abweichendem Drehkonsator; auch ist die Hauptplatine eine andere Ausführung als hier von Angelo Daniele vorgestelltem SP600.

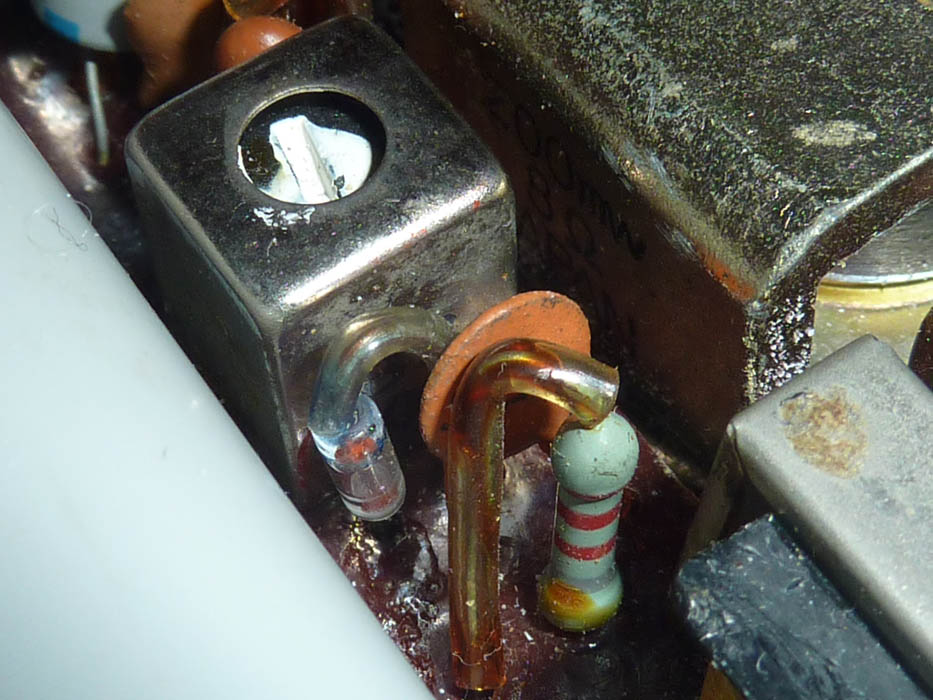

Demodulator


Endstufe
