Super Knips 64
Use red slider bar for more.
Sanritsu Electric Co: Super Knips 64 [Radio] ID = 2382463 1400x1103
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1962–1964 | Category: Broadcast Receiver - or past WW2 Tuner | ||||
| Semiconductors (the count is only for transistors) | 6: |
|---|
| Main principle | Superheterodyne (common) |
|---|---|
| Wave bands | Broadcast only (MW). |
| Details | |
| Power type and voltage | Dry Batteries / 4 x 1,5 Volt |
| Loudspeaker | Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil) |
| Power out | |
| from Radiomuseum.org | Model: Super Knips 64 - Sanritsu Electric Co., Japan |
| Material | Plastics (no bakelite or catalin) |
| Shape | Very small Portable or Pocket-Set (Handheld) < 8 inch. |
| Dimensions (WHD) | 155 x 90 x 45 mm / 6.1 x 3.5 x 1.8 inch |

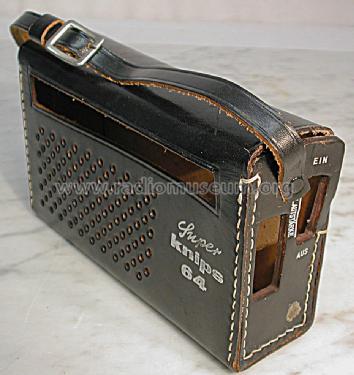

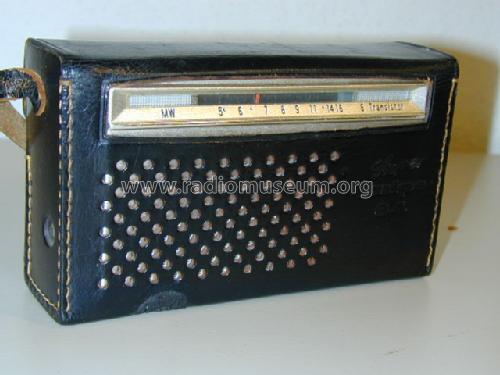

| Notes | Super Knips 64 , 6 transistor radio Made in Japan with leather case |
| Net weight (2.2 lb = 1 kg) | 0.5 kg / 1 lb 1.6 oz (1.101 lb) |
Model page created by Eckhard Wegner. See "Data change" for further contributors.
