For model 200, Sansui Electric Co., Ltd.; Tokyo:

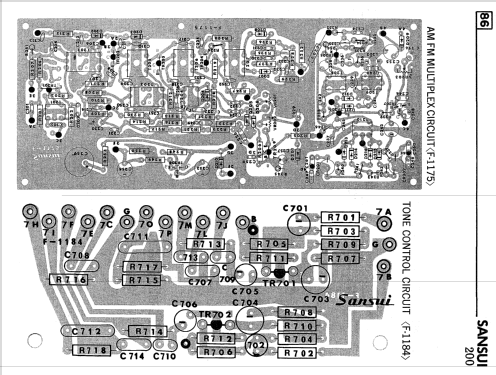

From service manual.

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1971 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 30:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Tuned circuits 5 AM circuit(s)     7 FM circuit(s)
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 50 to 60 Hz, 8 taps 100, 110, 117, 127, 220, 230, 240, 250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 10 W (undistorted)
from Radiomuseum.org Model: 200 - Sansui Electric Co., Ltd.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 15.75 x 4.75 x 11 inch / 400 x 121 x 279 mm
Notes

Sansui model 200 AM/FM stereo receiver. Connections for Magnetic Phono, Aux, and Tape Monitor.

Net weight (2.2 lb = 1 kg) 13.2 lb (13 lb 3.2 oz) / 5.993 kg
Literature/Schematics (1) Radio College of Canada (RCC) (1972 Component Stereo #8)

Model page created by Tom Seeger. See "Data change" for further contributors.
