• Year
  • 1975
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 146622

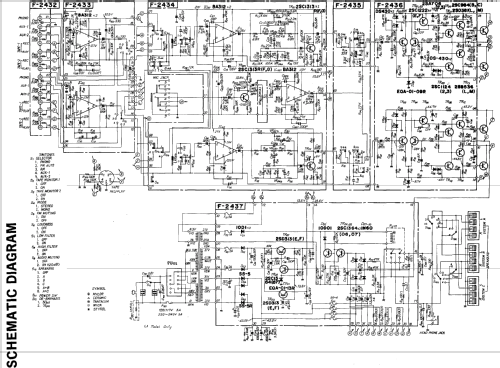

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • Semiconductors present.
  • Semiconductors
  • Main principle
  • Superheterodyne (common)
  • Wave bands
  • Broadcast (BC) and FM or UHF.
  • Power type and voltage
  • Alternating Current supply (AC) / 220 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 128 W (unknown quality)
  • Material
  • Wooden case
  • from Radiomuseum.org
  • Model: 881 - Sansui Electric Co., Ltd.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 480 x 135 x 300 mm / 18.9 x 5.3 x 11.8 inch
  • Notes
  • FM/AM-Stereo-Receiver mit 2 x 64 Watt Sinus an 8 Ohm.
    Gehäuseausführung Silber.
  • Net weight (2.2 lb = 1 kg)
  • 13.2 kg / 29 lb 1.2 oz (29.075 lb)
  • Price in first year of sale
  • 1,698.00 DM
  • Source of data
  • -- Original prospect or advert
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
