AM/FM Stereo Tuner TU-505

AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 1043229) Radio

AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 1043230) Radio

AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 1043231) Radio

AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 1043233) Radio

AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 1043234) Radio

AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 1043236) Radio

AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 1043237) Radio
AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 1042902) Radio AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 2623487) Radio
AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 2623488) Radio
Use red slider bar for more.
AM/FM Stereo Tuner TU-505; Sansui Electric Co., (ID = 1042902) Radio
Sansui Electric Co.,: AM/FM Stereo Tuner TU-505 [Radio] ID = 1042902 933x382
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Tuner TU-505, Sansui Electric Co., Ltd.; Tokyo:
From brochure.

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1974 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 28:
Main principle Superheterodyne (common); ZF/IF 455/10700 kHz
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 100; 117; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM/FM Stereo Tuner TU-505 - Sansui Electric Co., Ltd.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 407 x 115 x 278 mm / 16 x 4.5 x 10.9 inch
Notes

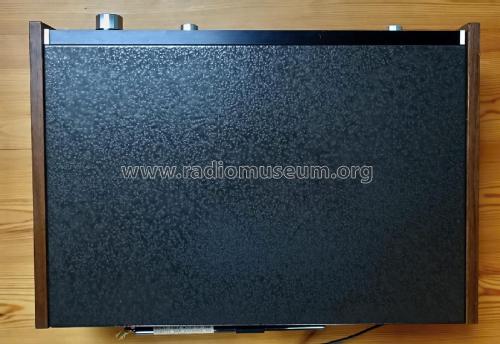

A hi-fi AM/FM stereo tuner with an analogue dial housed in a metal case with wooden side panels. With rotary Tuning control, Signal strength meter, FM Stereo indicator, on/off switches for Power, Noise Suppression and FM Muting and a rotary Selector switch (AM, FM Auto, FM Mono). On the back, an adjustable ferrite rod AM antenna, terminals for AM and FM antennae and Ground, RCA Phono sockets for Tape Rec output and Line output, an FM Local/Distant switch and an unswitched AC outlet.

Specification
FM SECTION
TUNING RANGE 88-108MHz
SENSITIVITY (IHF) 2.5µv
TOTAL HARMONIC DISTORTION MONO < 0.6%, STEREO < 0.8%
SIGNAL TO NOISE RATIO > 65dB
SELECTIVITY > 50dB
CAPTURE RATIO (IHF) < 2.5dB
IMAGE FREQUENCY REJECTION > 50dB at 98MHz
IF REJECTION > 60dB
SPURIOUS RESPONSE REJECTION > 60dB
STEREO SEPARATION > 35dB at 400Hz
SPURIOUS RADIATION < 34dB
FREQUENCY RESPONSE 30-15,000Hz +1dB,-2.5dB
ANTENNA INPUT IMPEDANCE 300Ω balanced, 75Ω unbalanced
ANTENNA ATT. 20dB
AM SECTION
TUNING RANGE 535-1,605kHz
SENSITIVITY (Bar Antenna) 50dB/m
SELECTIVITY > 25dB
IMAGE FREQUENCY REJECTION > 80dB/m at 1,000KHz
IF REJECTION > 80dB/m
OUTPUT 1V
TAPE REC OUTPUT 0.4V

Semiconductors: Transistors 27; FET 1; Diodes 19; IC 1
Power Requirements: 100, 117, 220, 240V 50/60Hz with voltage selector
Power Consumption: 16VA (Max.) , 14 Watts (Rated)

Net weight (2.2 lb = 1 kg) 5.5 kg / 12 lb 1.8 oz (12.115 lb)
Price in first year of sale 848.00 DM
Source of data -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature (Operating Instructions and Service Manual Sansui TU-505)

Model page created by Víctor Caselli-Diaconescu. See "Data change" for further contributors.
