For model AM/FM Stereo Receiver 5500, Sansui Electric Co., Ltd.; Tokyo:
Ebay.com auction item 183682969648 seller firstvideo

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1971 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 69:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 100; 110; 117; 127; 220; 230; 240; 250 Volt
Loudspeaker - This model requires external speaker(s).
Power out
from Radiomuseum.org Model: AM/FM Stereo Receiver 5500 - Sansui Electric Co., Ltd.;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 513 x 147 x 355 mm / 20.2 x 5.8 x 14 inch
Notes

Sansui AM/FM Stereo Receiver Model 5500.
Tuning range:
FM 88 - 108 MHz
AM 535 - 1605kHz
Power output: 45 watts per channel into 8Ω (stereo)
Frequency response: 20Hz to 40kHz
Total harmonic distortion: 0.4%
Damping factor: 30

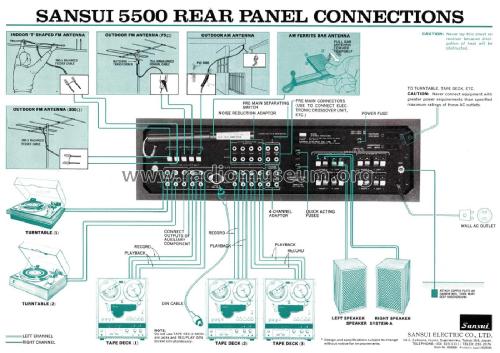

Inputs:
Phono-1, Phono-2, AUX, Tape Monitor
Input sensitivity: 3.5mV (mic), 2.5mV (MM), 150mV (DIN), 150mV (line)
Signal to noise ratio: 70dB (MM), 80dB (line)
Channel separation: 50dB (MM), 50dB (line)
Output: 150mV (line), 30mV (DIN), 0.8V (Pre out)
Tone Controls:
Bass 50Hz +/-12dB
Treble 15000Hz +/-12dB
Filters:
Low 60Hz -10dB, 6dB/Oct
High 10000Hz +10dB, 6dB/Oct
Speaker load impedance: 4Ω to 16Ω
Power Consumption:
550VA (max.) 125 Watts (Rated)
AC Outlets:
1x Unswitched max. 150VA
1x Switched mx. 50VA

Semiconductors:
69 x transistors, 2 x FET's, 19 x diodes, 1 x IC

Net weight (2.2 lb = 1 kg) 19 kg / 41 lb 13.6 oz (41.85 lb)
Mentioned in - - Manufacturers Literature (Operatig & Service Manual)

Model page created by Franz Scharner. See "Data change" for further contributors.
