For model AM/FM Stereo Tuner T-505, Sansui Electric Co., Ltd.; Tokyo

Country:

Japan

Manufacturer / Brand:

Sansui Electric Co., Ltd.; Tokyo

Year: 1982 ?

Category: Broadcast Receiver - or past WW2 Tuner

Semiconductors (the count is only for transistors)

Semiconductors present.

Main principle

Superheterodyne (common)

Wave bands

Broadcast (BC) and FM or UHF.

Details

Hi-Fi equipment

Power type and voltage

Alternating Current supply (AC) / 120; 220; 240 Volt

Loudspeaker

- For headphones or amp.

Power out

from Radiomuseum.org

Model: AM/FM Stereo Tuner T-505 - Sansui Electric Co., Ltd.;

Material

Metal case

Shape

Book-shelf unit.

Dimensions (WHD)

430 x 78 x 238 mm / 16.9 x 3.1 x 9.4 inch

Notes

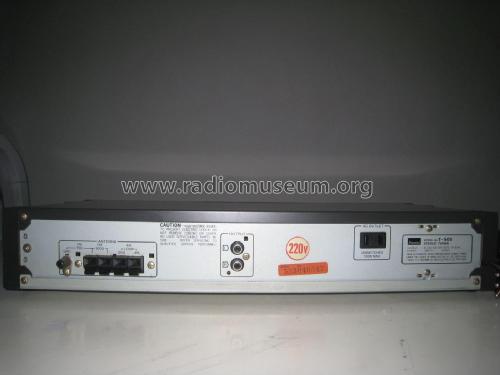

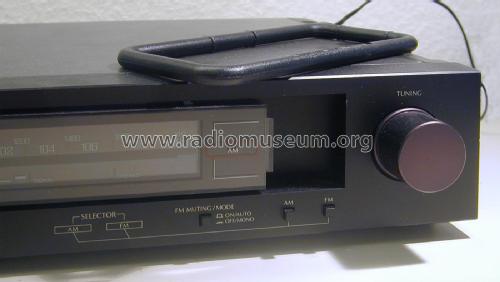

A hi-fi AM/FM stereo tuner with an analogue dial housed in a silver or black metal case.

Specification
FM Section
Tuning range	88-108MHz
Usable sensitivity Mono	IHF 10.8dBf (1.9µV), DIN 0.9µV
50dB quieting sensitivity	Mono 16.5dBf, Stereo 37.0dBf
S/N ratio at 65dBf	Mono 75dB, Stereo 70dB
Distortion at 65dBf	Mono < 0.15% at 1,000Hz Stereo < 0.2% at 1,000Hz
Alt. channel selectivity (at 400kHz)	55dB
Stereo separation	40dB at 1,000Hz
Frequency response	30-15,000Hz +1.0dB,-1.5dB
Antenna input impedance	300Ω balanced, 75Ω unbalanced
AM Section
Tuning range	530-1,600kHz
Usable sensitivity (Loop antenna)	53dB/m (446µV/m)
S/N ratio	45dB
Image response ratio	40dB at 1,000kHz
Output voltage/impedance	500mV/2.2kΩ

Versions/Power requirements
General / 220/240V AC 50/60Hz with voltage Selector
USA and Canada / 120V AC 60Hz

Power consumption: 8 Watts

Similar to the Sansui T-505L AM/FM Stereo Tuner which additionally has LW.

Net weight (2.2 lb = 1 kg)

2.7 kg / 5 lb 15.2 oz (5.947 lb)

Literature/Schematics (1)

- - Manufacturers Literature (Service manual Sansui T-505/T-505L)
