AM/FM Stereo Tuner TU-417

AM/FM Stereo Tuner TU-417; Sansui Electric Co., (ID = 2130269) Radio
AM/FM Stereo Tuner TU-417; Sansui Electric Co., (ID = 2030614) Radio AM/FM Stereo Tuner TU-417; Sansui Electric Co., (ID = 2030615) Radio
AM/FM Stereo Tuner TU-417; Sansui Electric Co., (ID = 2030616) Radio AM/FM Stereo Tuner TU-417; Sansui Electric Co., (ID = 2030619) Radio
Use red slider bar for more.

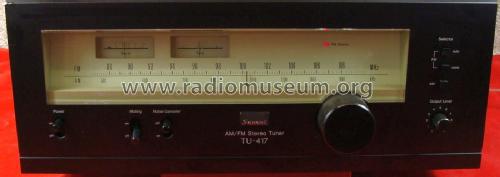

AM/FM Stereo Tuner TU-417; Sansui Electric Co., (ID = 2030614) Radio
Sansui Electric Co.,: AM/FM Stereo Tuner TU-417 [Radio] ID = 2030614 1400x496
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Tuner TU-417, Sansui Electric Co., Ltd.; Tokyo:
Ebay Auction

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1978–1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 120 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM/FM Stereo Tuner TU-417 - Sansui Electric Co., Ltd.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 168 x 405 mm / 16.9 x 6.6 x 15.9 inch
Notes

Sansui AM/FM Stereo Tuner Model TU-417.
Tuning Bands: FM, MW
Tuning Scale: Analogue
FM Tuning Range: 88 to 108 MHz
MW Tuning Range: 530 to 1600 kHz
Sensitivity: 1.0uV (FM)
Signal to Noise Ratio: 73dB (FM), 48dB (MW)
Distortion: 0.09% (FM)
Selectivity: 50dB (FM), 35dB (MW)
Frequency response: 20Hz to 15kHz (FM)
Output: 775mV
Supplied with rack mounting handles (19" Rack)
Power Consumption 17 Watts

Net weight (2.2 lb = 1 kg) 8.3 kg / 18 lb 4.5 oz (18.282 lb)
Price in first year of sale 150.00 GBP
Mentioned in -- Original prospect or advert (Sansui Catalogue 1980)

Model page created by Franz Scharner. See "Data change" for further contributors.
