Stereo Amplifier AU-2200

• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 1975

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 146582

• Picture

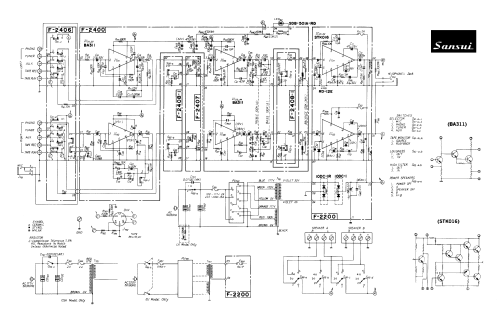

• Schematics

Previous Next

Previous Next

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC) / 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 26 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Stereo Amplifier AU-2200 - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 400 x 120 x 240 mm / 15.7 x 4.7 x 9.4 inch

• Notes
• HiFi-Verstärker mit 2 x 13 Watt Sinus an 8 Ohm.

• Net weight (2.2 lb = 1 kg)
• 5.5 kg / 12 lb 1.8 oz (12.115 lb)

• Source of data
• -- Original prospect or advert

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
