For model Solid State Stereo Tuner AU-888, Sansui Electric Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1971 ? Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) 41:
Main principle Audio-Amplification
Wave bands - without
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 100; 110; 117; 127; 220; 230; 240; 250 Volt
Loudspeaker - This model requires external speaker(s).
Power out 90 W (100 W max.)
from Radiomuseum.org Model: Solid State Stereo Tuner AU-888 - Sansui Electric Co., Ltd.;
Material Wooden case
Shape Book-shelf unit.
Dimensions (WHD) 460 x 140 x 305 mm / 18.1 x 5.5 x 12 inch
Notes

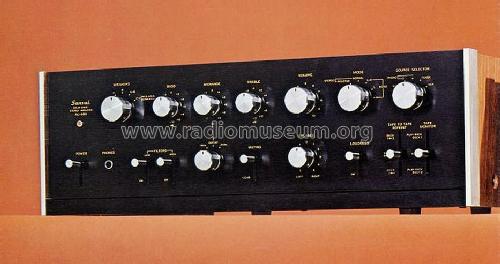

A hi-fi stereo integrated amplifier housed in a wooden case with continuous power output of   2 x 45 watts into 8 ohms or 2 x 50 watts into 4 ohms, THD < 0.4%. Music Power 2 x 70 watts (IHF) into 4 Ohms. Output stage 4 x 2SC1111. Triple Tone Control system, separable preamplifier and power amplifier sections, handles two tape decks. Inputs for 2 Phonos, Mic, Tuner, Aux, Tape Monitor, outputs for tape recording, terminals for 3 pairs of loudspeakers.

Semiconductors: Transistors 41, Diodes 12, SCRs 2

Net weight (2.2 lb = 1 kg) 12.6 kg / 27 lb 12.1 oz (27.753 lb)
Price in first year of sale 1'448.00 DM
Source of data - - Data from my own collection
Mentioned in -- Original-techn. papers.
Literature/Schematics (1) - - Manufacturers Literature (Operating Instructions and Service Manual AU-888)

Model page created by Jos Lauth. See "Data change" for further contributors.
