AU-919

AU-919; Sansui Electric Co., (ID = 746583) Ampl/Mixer

AU-919; Sansui Electric Co., (ID = 746585) Ampl/Mixer

AU-919; Sansui Electric Co., (ID = 746587) Ampl/Mixer

AU-919; Sansui Electric Co., (ID = 746590) Ampl/Mixer
AU-919; Sansui Electric Co., (ID = 2479102) Ampl/Mixer AU-919; Sansui Electric Co., (ID = 2479103) Ampl/Mixer
AU-919; Sansui Electric Co., (ID = 2479104) Ampl/Mixer AU-919; Sansui Electric Co., (ID = 566558) Ampl/Mixer
Use red slider bar for more.
AU-919; Sansui Electric Co., (ID = 2479102) Ampl/Mixer
Sansui Electric Co.,: AU-919 [Ampl/Mixer] ID = 2479102 1400x786

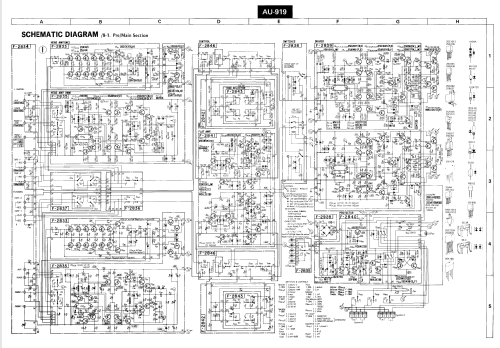

Select picture or schematic to display from thumbnails on the right and click for download.
For model AU-919, Sansui Electric Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1978 Category: Audio Amplifier or -mixer
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Audio-Amplification
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - This model requires external speaker(s).
Power out 312 W (unknown quality)
from Radiomuseum.org Model: AU-919 - Sansui Electric Co., Ltd.;
Material Metal case
Shape Rack
Dimensions (WHD) 430 x 168 x 428 mm / 16.9 x 6.6 x 16.9 inch
Notes Stereo-Verstärker mit 2× 168 Watt (DIN). Frequenzgang: 0 - 500.000 Hz. Gesamtklirrfaktor 0,008 %.
Net weight (2.2 lb = 1 kg) 21 kg / 46 lb 4.1 oz (46.256 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.



All listed radios etc. from Sansui Electric Co., Ltd.; Tokyo
Here you find 378 models, 365 with images and 114 with schematics for wireless sets etc. In French: TSF for Télégraphie sans fil.
