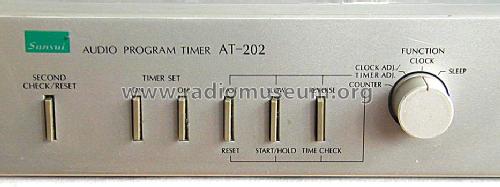

Audio Program Timer AT-202

Audio Program Timer AT-202; Sansui Electric Co., (ID = 1546747) Misc Audio Program Timer AT-202; Sansui Electric Co., (ID = 1546748) Misc
Audio Program Timer AT-202; Sansui Electric Co., (ID = 1546749) Misc Audio Program Timer AT-202; Sansui Electric Co., (ID = 1546750) Misc
Audio Program Timer AT-202; Sansui Electric Co., (ID = 1546751) Misc Audio Program Timer AT-202; Sansui Electric Co., (ID = 1546752) Misc
Audio Program Timer AT-202; Sansui Electric Co., (ID = 1546753) Misc Audio Program Timer AT-202; Sansui Electric Co., (ID = 1546754) Misc
Use red slider bar for more.
Audio Program Timer AT-202; Sansui Electric Co., (ID = 1546747) Misc
Sansui Electric Co.,: Audio Program Timer AT-202 [Misc] ID = 1546747 933x348
Select picture or schematic to display from thumbnails on the right and click for download.
For model Audio Program Timer AT-202, Sansui Electric Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1988 ?? Category: Miscellaneous (Other, Various) - see notes
Valves / Tubes 1: FG512H6
Semiconductors (the count is only for transistors) 2: 2SC1815 2SC1815 MN6076
Wave bands - without
Details
Power type and voltage Alternating Current supply (AC) / 220 Volt
Loudspeaker - - No sound reproduction output.
Power out
from Radiomuseum.org Model: Audio Program Timer AT-202 - Sansui Electric Co., Ltd.;
Material Modern plastics (no Bakelite or Catalin)
Shape Book-shelf unit.
Dimensions (WHD) 430 x 60 x 130 mm / 16.9 x 2.4 x 5.1 inch
Notes

Audio Program Timer AT-202
Vorschaltgerät zum programmierbaren Einschalten eines Audio-Gerätes.

Net weight (2.2 lb = 1 kg) 1.4 kg / 3 lb 1.3 oz (3.084 lb)

Model page created by a member from D. See "Data change" for further contributors.
