Digital Synthesizer Tuner TU-X701

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037645) Radio

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037646) Radio

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037647) Radio

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037648) Radio

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037649) Radio

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037650) Radio

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037651) Radio

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037652) Radio

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037653) Radio

Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037654) Radio
Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037642) Radio Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037643) Radio
Use red slider bar for more.
Digital Synthesizer Tuner TU-X701; Sansui Electric Co., (ID = 2037642) Radio
Sansui Electric Co.,: Digital Synthesizer Tuner TU-X701 [Radio] ID = 2037642 1400x611
Select picture or schematic to display from thumbnails on the right and click for download.
For model Digital Synthesizer Tuner TU-X701, Sansui Electric Co., Ltd.; Tokyo:
Ebay Auction

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1987–1990 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle PLL, Phase-locked loop
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: Digital Synthesizer Tuner TU-X701 - Sansui Electric Co., Ltd.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 448 x 98 x 315 mm / 17.6 x 3.9 x 12.4 inch
Notes

A hi-fi AM/FM quartz PLL digital synthesizer tuner with a digital frequency display housed in a metal case, with fascia end trims fitted to some models. SLDD (Super-Linear Digital Decoder). With auto, manual and frequency direct tuning, 5 signal strength LEDs. On the back, a clip-on adjustable AM loop antenna, terminals for AM antenna, two co-axial FM connections and RCA phono Line Output sockets.

Features

  • Random presets for 30 FM and AM stations
  • Numeric keypad for instant recall of preset stations
  • Programming two station frequencies for unattended recording
  • Memory scan
  • RF mode selection
  • IF bandwidth selection
  • Record calibrator
  • FM noise canceller
  • Mode switch
  • Two antenna inputs
Specification
FM Section 87.5 to 108MHz
Usable sensitivity Mono IHF 10.8dBf (0.95µV/75Ω)
50dB quieting sensitivity Mono 16.2dBf, Stereo 37.0dBf
Signal to noise ratio at 85dBf Mono 98dB, Stereo 91dB
Distortion at 80dBf (WIDE)
 Mono
 Stereo
< 0.009% at 1kHz
< 0.02% at 1kHz
Alt. channel selectivity
 WIDE (at 400kHz)
 NARROW (at 300kHz)
60dB
75dB
Stereo separation (WIDE) 60dB at 1kHz
Frequency response 20-15,000Hz +0.5dB,-0.5dB
Antenna input impedance (A/B) 75Ω unbalanced
AM Section 530 to 1,600kHz
Usable sensitivity 48dB/m (251µV/m)
Signal to noise ratio 50dB (85dB/m)
Image response ratio 45dB at 1,000kHz
Output voltage 0.775V

Versions/Power requirements
USA and Canada  /  120V AC 60Hz
Europe  /  220/240V AC 50/60Hz with voltage selector switch
General Export  /  120/220/240V AC 50/60Hz

Power consumption: 14 Watts

Similar to the Sansui TU-X711 Digital Synthesizer Tuner.

Net weight (2.2 lb = 1 kg) 5.1 kg / 11 lb 3.7 oz (11.233 lb)
Mentioned in -- Original prospect or advert (1987 and 1989-90 Sansui Collection catalogues)

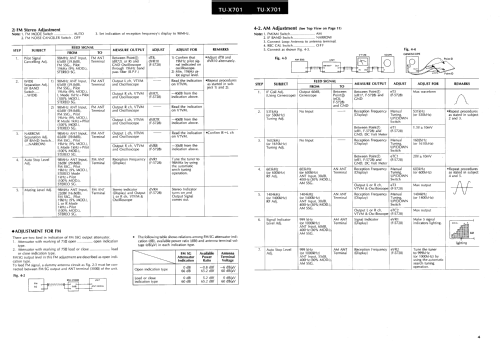

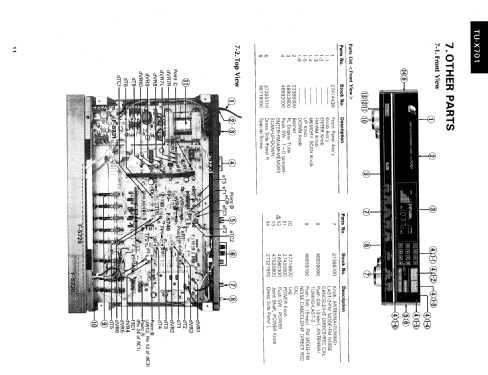

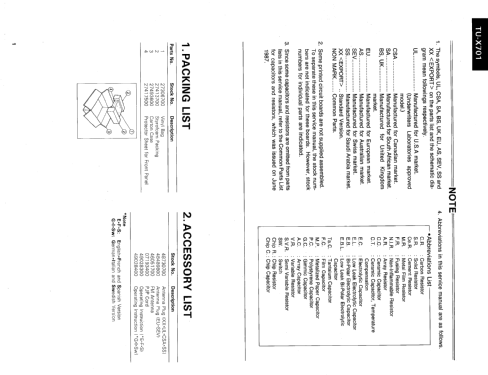

Literature/Schematics (1) - - Manufacturers Literature (Service manual TU-X701)

Model page created by Franz Scharner. See "Data change" for further contributors.
