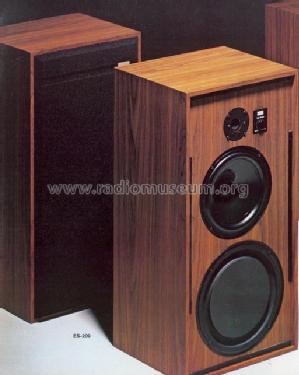

Sansui Electric Co.,: ES-209 [Speaker-P] ID = 566481 514x643
Select picture or schematic to display from thumbnails on the right and click for download.
For model ES-209, Sansui Electric Co., Ltd.; Tokyo:
Original prospekt in 1978.

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1978 Category: Loudspeaker, headphone or earphone
Wave bands - without
Details
Power type and voltage No Power needed
Loudspeaker 2 Loudspeakers
Power out
from Radiomuseum.org Model: ES-209 - Sansui Electric Co., Ltd.;
Material Wooden case
Shape Console with any shape - in general
Dimensions (WHD) 335 x 670 x 292 mm / 13.2 x 26.4 x 11.5 inch
Notes 2-Weg-HiFi-Box mit 110 Watt Musik an 8 Ohm. 20 - 35.000 Hz, 87dB/W.
TT 200mm, 1 Passiv-Strahler, HT 25mm Kalotte.
Frequenzweiche Übergang bei 2.500 Hz.
Gehäuseausführung in Nussbaum Furnier, Front abnehmbar.
Net weight (2.2 lb = 1 kg) 17.5 kg / 38 lb 8.7 oz (38.546 lb)
Source of data -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
