Solid State AM/FM MPX Stereo Tuner Amplifier 3000A

Solid State AM/FM MPX Stereo Tuner Amplifier 3000A; Sansui Electric Co., (ID = 1879590) Radio
Use red slider bar for more.
Solid State AM/FM MPX Stereo Tuner Amplifier 3000A; Sansui Electric Co., (ID = 1879590) Radio

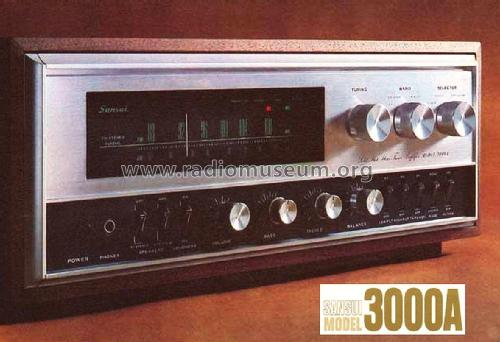

Sansui Electric Co.,: Solid State AM/FM MPX Stereo Tuner Amplifier 3000A [Radio] ID = 1879590 1179x807
Select picture or schematic to display from thumbnails on the right and click for download.
For model Solid State AM/FM MPX Stereo Tuner Amplifier 3000A, Sansui Electric Co., Ltd.; Tokyo:
Original Prospekt

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1969 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 52: 2SA525 2SC756 2SC372 2SC374 2SA101 2SA102 2SA49 2SB54 2SB324 2SC696 2SC458 2SC536 2SC649 2SC693 2SC650 OA91 OA79 1N60 1S352 SM150
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 50-60Hz: 100; 117; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 130 W (max.)
from Radiomuseum.org Model: Solid State AM/FM MPX Stereo Tuner Amplifier 3000A - Sansui Electric Co., Ltd.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 18.3 x 6.8 x 15 inch / 465 x 173 x 381 mm
Notes

Sansui Solid State AM/FM MPX Stereo Tuner Amplifier Model 3000A.

Amplifier section:
45 Watts per channel into 8Ω, 20 - 20000 Hz, 0,8% THD
Frequency response 20-20000 Hz +- 1.5dB
Low Filter: 50Hz
High Filter: 10kHz
Bass- & Treble Control, Loudness
Input:

  • Phono Mag: 2.5 mV RIAA
  • Tape head: 1.8 mV NAB
  • Tape monitor: Cinch & DIN:150 mV
  • AUX IN: 180mV

Output:

  • Speakers A, B
  • Tape record: Cinch: 150mV, DIN: 30 mV

Power consumption: @standby: 70 VA; @max power: 230VA.

52 Transistors, 40 diodes - Due to the long semiconductor list, every type is only mentioned once.

Tuner section:

  • AM: 535-1605 kHz; Sens:15µV
  • FM & FM stereo: 88-108 MHz: Sens: 1.8µV
Net weight (2.2 lb = 1 kg) 34.4 lb (34 lb 6.4 oz) / 15.618 kg
Literature/Schematics (1) -- Original-techn. papers.
