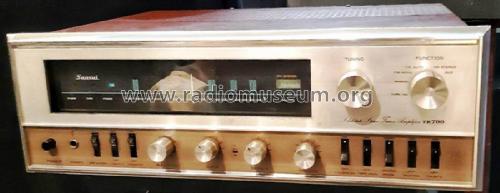

Solid-State FM Multiplex Stereo Tuner Amplifier TR-700

Sansui Electric Co., Ltd.; Tokyo

Data
Forum
Pictures
Collections

  • Year
  • 1966
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 266975

 Technical Specifications

  • Number of Transistors
  • 39
  • Main principle
  • Superheterodyne (common); ZF/IF 10700 kHz
  • Wave bands
  • FM Broadcast Band Only
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 117 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Solid-State FM Multiplex Stereo Tuner Amplifier TR-700 - Sansui Electric Co., Ltd.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 18.3 x 5.9 x 15 inch / 465 x 150 x 381 mm
  • Notes

  • A hi-fi receiver housed in a metal case with an FM stereo tuner with analogue dial and amplifier with power output of  2 x 20 watts RMS both channels driven into 8 ohms from 20 - 20,000Hz, THD 1%. Total  music power (IHFM) 50 watts.
    With Tuning meter, Rotary Tuning control, Volume, Bass and Treble Controls, Loudness, Stereo/Mono mode, Low Filter, High Filter, Muting, FM Stereo Auto, FM Stereo indicator, Flywheel tuning, AFC. Inputs for Phono, Tape Head, Aux, input/output Tape, Tape Monitor, terminals for FM antennae, outputs for Headphones, Centre Channel, 1 pair of Loudspeakers, 1 switched and 1 unswitched AC outlet.

  • Net weight (2.2 lb = 1 kg)
  • 24.6 lb (24 lb 9.6 oz) / 11.168 kg
  • Price in first year of sale
  • 239.95 USD
  • Mentioned in
  • -- Original prospect or advert
  • Literature/Schematics (1)
  • - - Manufacturers Literature (Operating Instructions and Service Manual Sansui TR-700)
  • Author
  • Model page created by Franz Scharner. See "Data change" for further contributors.
