Solid State Stereophonic Amplifier AU-555

Sansui Electric Co., Ltd.; Tokyo

  • Year
  • 1968/1969
  • Category
  • Audio Amplifier or -mixer
  • Radiomuseum.org ID
  • 97917

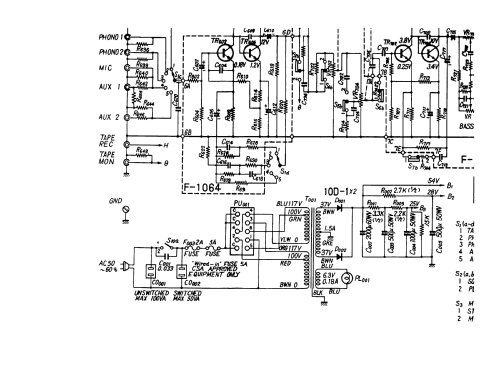

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 22
  • Semiconductors
  • Main principle
  • Audio-Amplification
  • Wave bands
  • - without
  • Details
  • Hi-Fi equipment
  • Power type and voltage
  • Alternating Current supply (AC) / 110; 117; 220; 240 Volt
  • Loudspeaker
  • - This model requires external speaker(s).
  • Power out
  • 40 W (undistorted)
  • Material
  • Metal case
  • from Radiomuseum.org
  • Model: Solid State Stereophonic Amplifier AU-555 - Sansui Electric Co., Ltd.;
  • Shape
  • Book-shelf unit.
  • Dimensions (WHD)
  • 15 x 4.375 x 10.875 inch / 381 x 111 x 276 mm
  • Notes
  • A hi-fi stereo integrated amplifier housed in a metal case with continuous power output of      2 x 20 watts each channel driven into 8 ohms or 2 x 25 watts each channel driven into 4 ohms, from 20 - 30,000Hz, THD 0.5%. The preamplifier and power amplifier sections can be separated.

    Semiconductors:  Transistors 22, Diodes 6, Thermistors 4, SCR 1
    Power requirements: 110, 117, 220, 240V AC 50/60Hz with voltage selector
    Power consumption: 120 VA max.

  • Net weight (2.2 lb = 1 kg)
  • 17.4 lb (17 lb 6.4 oz) / 7.900 kg
  • Price in first year of sale
  • 889.00 DM
  • Mentioned in
  • COMPO HiFi Preisliste November 1969
  • Literature/Schematics (2)
  • - - Manufacturers Literature (Operating Instructions and Service Manual Sansui AU-555)
  • Literature/Schematics (3)
  • -- Original prospect or advert (1969 Sansui Stereo catalogue)
  • Author
  • Model page created by Rudolf HEINZ. See "Data change" for further contributors.
