• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 1980

• Category
• Sound/Video Recorder and/or Player

• Radiomuseum.org ID
• 194388

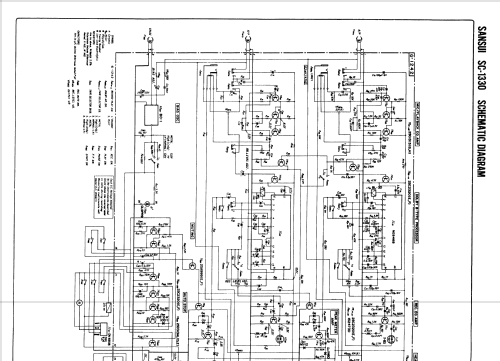

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• Semiconductors present.

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Details
• Cassette-Recorder or -Player

• Power type and voltage
• Alternating Current supply (AC) / 220/240 Volt

• Loudspeaker
• - For headphones or amp.

• Material
• Metal case

• from Radiomuseum.org

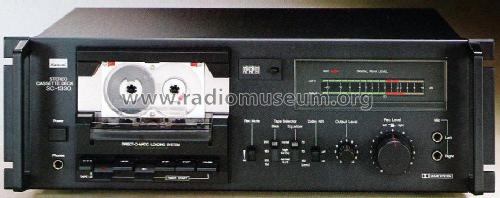

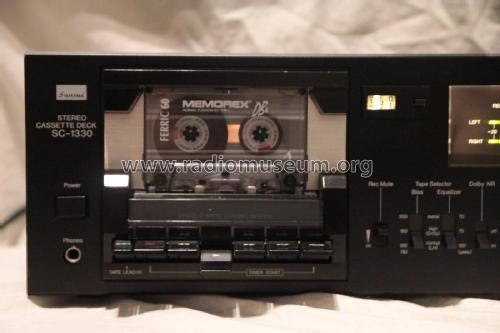

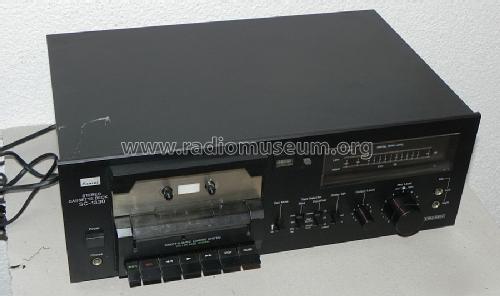

• Model: Stereo Cassette Deck SC-1330 - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 480 x 160 x 320 mm / 18.9 x 6.3 x 12.6 inch

• Notes

• Price in Italy in 1980: 389.000 ITL.

  Type: 2-head, single compact cassette deck
  Track System: 4-track, 2-channel stereo
  Tape Speed: 4.76 cm/s
  Heads: 1 x record/playback, 1 x erase
  Motor: electronically controlled DC
  Tape Type: type I, CrO2, Metal
  Noise Reduction: Dolby B
  Frequency Response: 20Hz to 16kHz  (Metal tape)
  Signal to Noise Ratio: 69dB  (dolby B)
  Wow and Flutter: 0.05%
  Input: 70mV (line), 0.3mV (mic)
  Output: 0.39V (line)

• Net weight (2.2 lb = 1 kg)
• 6.850 kg / 15 lb 1.4 oz (15.088 lb)

• Mentioned in
• Discoteca HiFi, Anno XXI, n. 208-209, Agosto-Settembre 1980, Italy

• Author
• Model page created by Alessandro De Poi. See "Data change" for further contributors.
