Stereo Receiver 6060

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520847) Radio

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520848) Radio

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520811) Radio

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520813) Radio

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520814) Radio

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520815) Radio

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520816) Radio

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520821) Radio

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520822) Radio

Stereo Receiver 6060; Sansui Electric Co., (ID = 1520823) Radio
Stereo Receiver 6060; Sansui Electric Co., (ID = 1519220) Radio Stereo Receiver 6060; Sansui Electric Co., (ID = 1519221) Radio
Stereo Receiver 6060; Sansui Electric Co., (ID = 1519222) Radio Stereo Receiver 6060; Sansui Electric Co., (ID = 1519223) Radio
Stereo Receiver 6060; Sansui Electric Co., (ID = 1519224) Radio Stereo Receiver 6060; Sansui Electric Co., (ID = 1519227) Radio
Stereo Receiver 6060; Sansui Electric Co., (ID = 1519228) Radio Stereo Receiver 6060; Sansui Electric Co., (ID = 1519229) Radio
Stereo Receiver 6060; Sansui Electric Co., (ID = 1519230) Radio Stereo Receiver 6060; Sansui Electric Co., (ID = 1519232) Radio
Use red slider bar for more.

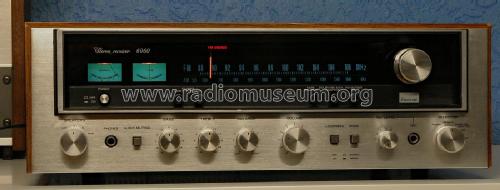

Stereo Receiver 6060; Sansui Electric Co., (ID = 1519220) Radio
Sansui Electric Co.,: Stereo Receiver 6060 [Radio] ID = 1519220 933x381
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo Receiver 6060, Sansui Electric Co., Ltd.; Tokyo

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1976 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 100; 120; 220; 240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 80 W (88 W max.)
from Radiomuseum.org Model: Stereo Receiver 6060 - Sansui Electric Co., Ltd.;
Material Wooden case
Shape Tablemodel, low profile (big size).
Dimensions (WHD) 465 x 150 x 330 mm / 18.3 x 5.9 x 13 inch
Notes

This is stereo receiver including a phono and microphone pre-amplifiers.

Specifications. Input power: 350VA max.  from 100/120/220/240VAC at 50/60Hz.
Output power: 40 Watt per channel at 0.4% THD into 8 Ohm load.
Power bandwidth: 20 to 20KHz. Phono RIAA: 2.5mV.
FM: 88 to 108 MHz. AM: 535 to 1605kHz.

See also Sansui Stereo Receiver 5050.



Net weight (2.2 lb = 1 kg) 11.5 kg / 25 lb 5.3 oz (25.33 lb)

Model page created by Jose Mesquita. See "Data change" for further contributors.
