• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 1974/1975

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 120936

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 49

• Semiconductors
• 2SC1402 2SC1402 2SC1402 2SC1402

• Main principle
• Superheterodyne (common)

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 117; 220; 240 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 80 W (110 W max.)

• Material

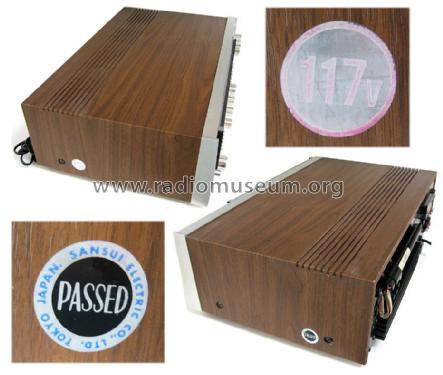

• Wooden case

• from Radiomuseum.org
• Model: Stereo Receiver 771 - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 480 x 150 x 330 mm / 18.9 x 5.9 x 13 inch

• Notes

• Sansui Receiver 771

  Das zweitgrößte Modell der neuen "1er" Receiverreihe ( 7 Geräte vom 221 bis zum 881) FM/AM-Stereo-Receiver mit Ausgangsleistung von:

  • 2 x 40 Watt Dauerleistung an 8 Ω
  • 2 x 55 Watt Musikleistung an 8 Ω
  • 2 x 70 Watt Musikleistung an 4 Ω

  Maximale Leistungsaufnahme 310 Watt,

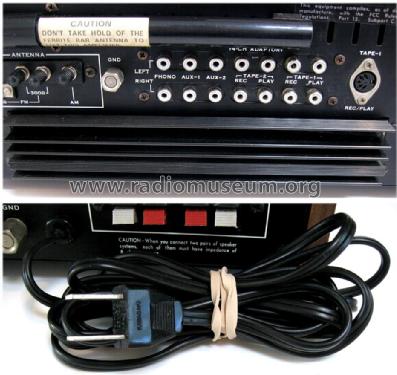

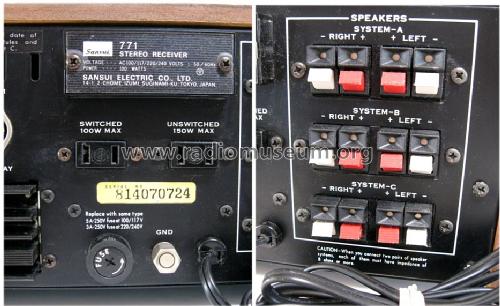

  Anschlüsse: Phono, 2 x Aux, 2 x Tape. 6 Lautsprecherklemmen.
  49 Transistoren, 25 Dioden, 3 FET's, 3 IC's, 4 Zenerdioden.

• Net weight (2.2 lb = 1 kg)
• 12.2 kg / 26 lb 14 oz (26.872 lb)

• Price in first year of sale
• 1,298.00 DM

• Source of data
• - - Data from my own collection

• Mentioned in
• -- Original prospect or advert (771 Specifications und HiFi Leitfaden 1975776)

• Author
• Model page created by Peter Böhm. See "Data change" for further contributors.
