Stereo tuner amplifier Solid State 5000

Stereo tuner amplifier Solid State 5000; Sansui Electric Co., (ID = 1737842) Radio Stereo tuner amplifier Solid State 5000; Sansui Electric Co., (ID = 1737852) Radio
Use red slider bar for more.
Stereo tuner amplifier Solid State 5000; Sansui Electric Co., (ID = 1737842) Radio
Sansui Electric Co.,: Stereo tuner amplifier Solid State 5000 [Radio] ID = 1737842 933x827
Select picture or schematic to display from thumbnails on the right and click for download.
For model Stereo tuner amplifier Solid State 5000, Sansui Electric Co., Ltd.; Tokyo:

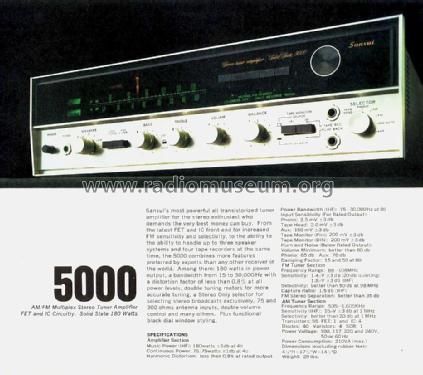

Sales Brochure

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1969 ? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 55:
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details
Power type and voltage Alternating Current supply (AC) / 100/117/220/240 Volt
Loudspeaker - This model requires external speaker(s).
Power out 180 W (max.)
from Radiomuseum.org Model: Stereo tuner amplifier Solid State 5000 - Sansui Electric Co., Ltd.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 17.25 x 4.875 x 14.5 inch / 438 x 124 x 368 mm
Notes

Sansui Solid State Stereo AM-FM Receiver Model 5000.
Frequency Range: FM 88 - 108 MHz, AM 53 - 1605 kHz
2 x 75 Watts continuous Power into 4 Ohms
Bass- & Treble Control, Low & High Filter
Phono IN, Tape IN, AUX IN
Tape Monitor
Power Consumption 210VA (max.)
40 Diodes, 4 Varistors, 1 FET, 4 IC's, 1 SCR

Net weight (2.2 lb = 1 kg) 29 lb (29 lb 0 oz) / 13.166 kg
Mentioned in -- Original prospect or advert

Model page created by Franz Scharner. See "Data change" for further contributors.
