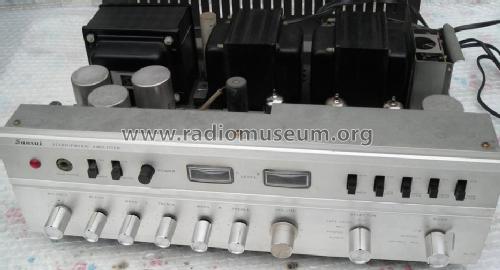

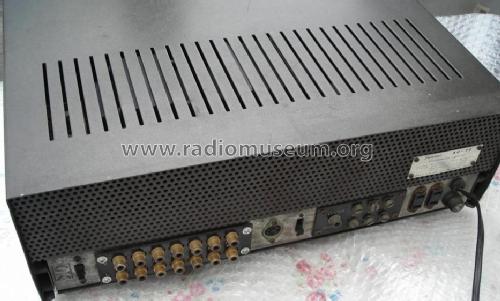

Stereophonic Amplifier AU-70
Use red slider bar for more.
Sansui Electric Co.,: Stereophonic Amplifier AU-70 [Ampl/Mixer] ID = 314771 933x503
Select picture or schematic to display from thumbnails on the right and click for download.
|
|
||||
| Year: 1964 | Category: Audio Amplifier or -mixer | ||||

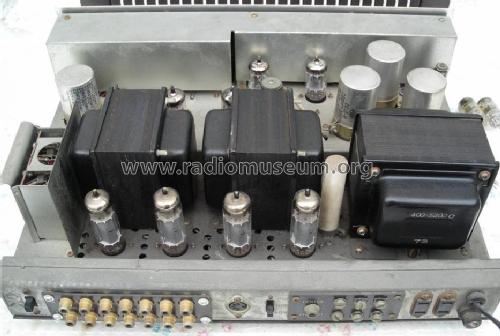

| Valves / Tubes | 9: 12AX7 12AX7 12AX7 6AN8 6AN8 7189 7189 7189 7189 | ||||
|---|---|---|---|---|---|
| Semiconductors (the count is only for transistors) | 4: 2SB381 2SB381 2SB381 2SB381 |
| Main principle | Audio-Amplification |
|---|---|
| Wave bands | - without |
| Details | Hi-Fi equipment |
| Power type and voltage | Alternating Current supply (AC) / 100; 117; 240 Volt |
| Loudspeaker | - This model requires external speaker(s). |
| Power out | 40 W (50 W max.) |
| from Radiomuseum.org | Model: Stereophonic Amplifier AU-70 - Sansui Electric Co., Ltd.; |
| Material | Metal case |
| Shape | Book-shelf unit. |
| Dimensions (WHD) | 405 x 142 x 320 mm / 15.9 x 5.6 x 12.6 inch |
| Notes | A hi-fi stereo integrated amplifier with power output of 2 x 25 watts max. or 2 x 20 watts with THD 0.15% max. at 1000Hz and THD 0.95% max. at 30Hz. |
| Net weight (2.2 lb = 1 kg) | 13.7 kg / 30 lb 2.8 oz (30.176 lb) |
| Source of data | -- Collector info (Sammler) |
| Literature/Schematics (1) | - - Manufacturers Literature (Service manual Sansui AU-70) |
| Literature/Schematics (2) | - - Manufacturers Literature (Operting Instructions Sansui AU-70) |
Model page created by Gottfried Silberhorn. See "Data change" for further contributors.
