• Country
• Japan

• Manufacturer / Brand
• Sansui Electric Co., Ltd.; Tokyo

• Year
• 9999/9999

• Category
• Audio Amplifier or -mixer

• Radiomuseum.org ID
• 162823

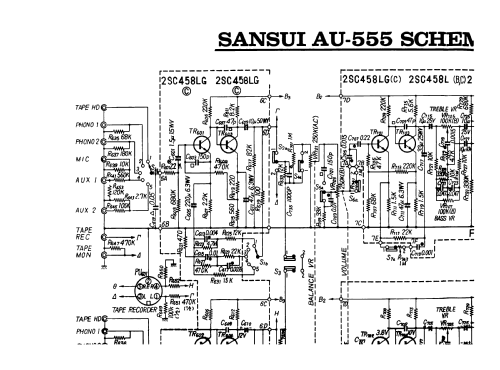

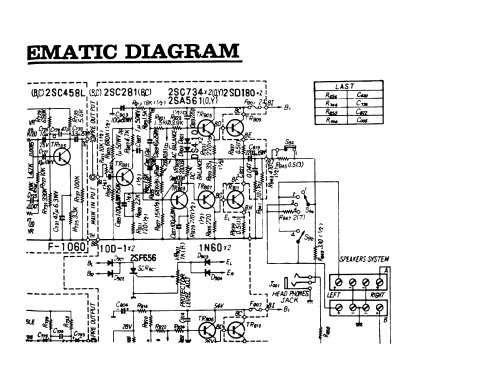

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 22

• Semiconductors

• Main principle
• Audio-Amplification

• Wave bands
• - without

• Power type and voltage
• Alternating Current supply (AC)

• Loudspeaker
• - This model requires external speaker(s).

• Power out
• 40 W (unknown quality)

• Material
• Metal case

• from Radiomuseum.org
• Model: Dublette with ID=97917 - Sansui Electric Co., Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 382 x 111 x 267 mm / 15 x 4.4 x 10.5 inch

• Notes
• Stereo Integrated Amplifier, 20 watts RMS per channel into 8 ohms.

• Net weight (2.2 lb = 1 kg)
• 7.9 kg / 17 lb 6.4 oz (17.401 lb)

• Author
• Model page created by Franz Scharner. See "Data change" for further contributors.
