AM/FM Stereo Tuner TU-217

AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1133906) Radio

AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1133907) Radio

AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 2030547) Radio
AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 624229) Radio AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 566541) Radio
AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1183669) Radio AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1183670) Radio
AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1183671) Radio AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1183672) Radio
AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1183674) Radio AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1183675) Radio
AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1183676) Radio AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 1183677) Radio
Use red slider bar for more.
AM/FM Stereo Tuner TU-217; Sansui Electric Co., (ID = 624229) Radio
Sansui Electric Co.,: AM/FM Stereo Tuner TU-217 [Radio] ID = 624229 933x297
Select picture or schematic to display from thumbnails on the right and click for download.
For model AM/FM Stereo Tuner TU-217, Sansui Electric Co., Ltd.; Tokyo:
Sansui Prospekt

Country:  Japan
Manufacturer / Brand:  Sansui Electric Co., Ltd.; Tokyo
Year: 1978–1980 Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) Semiconductors present.
Main principle Superheterodyne (common)
Wave bands Broadcast (BC) and FM or UHF.
Details Hi-Fi equipment
Power type and voltage Alternating Current supply (AC) / 100; 120; 220; 240 Volt
Loudspeaker - For headphones or amp.
Power out
from Radiomuseum.org Model: AM/FM Stereo Tuner TU-217 - Sansui Electric Co., Ltd.;
Material Metal case
Shape Book-shelf unit.
Dimensions (WHD) 430 x 110 x 307 mm / 16.9 x 4.3 x 12.1 inch
Notes

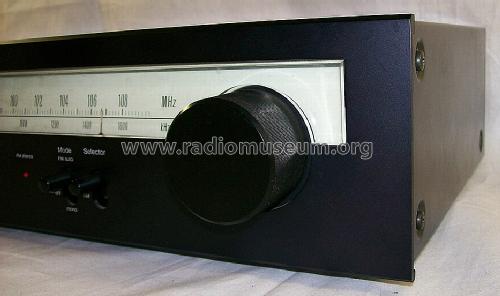

A hi-fi AM/FM stereo tuner with an analogue dial housed in a black metal case. Supplied with rack handles. With Signal strength and Tuning meters, rotary Tuning control, FM stereo indicator, switches for Mode (FM Auto, Mono) and Selector (FM, AM). On the rear, an adjustable AM ferrite bar antenna, terminals for AM and FM antennae and RCA phono Line Output sockets.

Specification
FM Section
Tuning range 88 - 108MHz
Usable Sensitivity
 Mono IHF
 Stereo IHF
10.6dBf (1.85µV)
20.0dBf
50dB Quieting Sensitivity Mono 18dBf, Stereo 38dBf
S/N ratio at 65dBf Mono 70dB, Stereo 68dB
Distortion (at 65dBf)
 Mono


< 0.15% at 100Hz
< 0.13% at 1kHz
< 0.25% at 6kHz
 Stereo


< 0.18% at 100Hz
< 0.15% at 1kHz
< 0.35% at 6kHz
Alt. channel selectivity (at 400kHz) 50dB
Capture ratio 1.7dB
Image response ratio 48dB (at 98MHz)
Spurious response ratio 68dB (at 98MHz)
Stereo separation


35dB at 100Hz
40dB at 1kHz
30dB at 10kHz
Frequency response 30-15,000Hz +1dB,-1dB
Antenna input impedance 300Ω balanced, 75Ω unbalanced
AM Section
Tuning range 530 - 1,600 kHz
Usable sensitivity (Bar antenna) 50dB/m (300µV/m)
Selectivity (±10kHz) 35dB
S/N ratio 46dB
Output level 0.7V

Semiconductors: 8 transistors, 6 diodes, 1 FET, 4 ICs

Versions/Power requirements
U.S.A. & Canada  / 120V (Usable 110-130V) 60Hz
General  /  100, 120, 220, 240V 50/60Hz

Power consumption: 4 Watts

Net weight (2.2 lb = 1 kg) 5.3 kg / 11 lb 10.8 oz (11.674 lb)
Source of data -- Original prospect or advert
Mentioned in -- Original prospect or advert (1978-79 Sansui Hi-Fi and 1980 Sansui Hi-Fi Guide catalogues)
Literature/Schematics (1) - - Manufacturers Literature (Service manual Sansui TU-217)
Literature/Schematics (2) - - Manufacturers Literature (Operating Instructions Sansui TU-217)
