• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1968 ??

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 148203

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 18

• Semiconductors
• 2SC668 2SC772 2SA101 2SA102 2SB185 2SA202 2SB187 2SB186 2SB492 LA1201 1S188 1S553 10DC-1

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast (BC) and FM or UHF.

• Power type and voltage
• Alternating Current supply (AC) / 110; 220 Volt

• Loudspeaker
• - This model requires external speaker(s).

• Material
• Wooden case

• from Radiomuseum.org

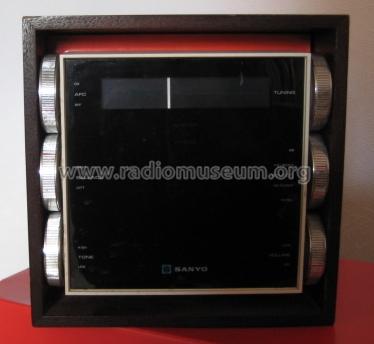

• Model: 21FA-454S - Sanyo Electric Co. Ltd.;

• Shape
• Book-shelf unit.

• Dimensions (WHD)
• 220 x 220 x 250 mm / 8.7 x 8.7 x 9.8 inch

• Notes

• AM/FM receiver, FM stereo with two external speakers (16 Ω).  Antenna can be switched internally/externally, stereo phono input.

  AM/FM-Receiver, FM-Stereo Gerät für 2 externe Lautsprecher 16 Ω, Antenne intern/extern schaltbar, Stereo-Phonoeingang.

  Semiconductor listed one per type: 18 Transistors, 1 IC, 8 Diodes and 4 Rectifier Diodes.

• Net weight (2.2 lb = 1 kg)
• 3.5 kg / 7 lb 11.3 oz (7.709 lb)

• Mentioned in
• -- Schematic (Schemario Radio Autoradio Mangianastri edizioni "Il Rostro" Italy, March 1971.)

• Author
• Model page created by Jürgen R. Gabriel. See "Data change" for further contributors.
