2-Band 7 Transistor 7L-706NE British station scale

Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

  • Year
  • 1967 ?
  • Category
  • Broadcast Receiver - or past WW2 Tuner
  • Radiomuseum.org ID
  • 201505

Click on the schematic thumbnail to request the schematic as a free document.

 Technical Specifications

  • Number of Transistors
  • 7
  • Semiconductors
  • Main principle
  • Superheterodyne (common); ZF/IF 470 kHz
  • Wave bands
  • Broadcast (MW) and Long Wave.
  • Power type and voltage
  • Dry Batteries / 3 x 1,5 Volt
  • Loudspeaker
  • Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

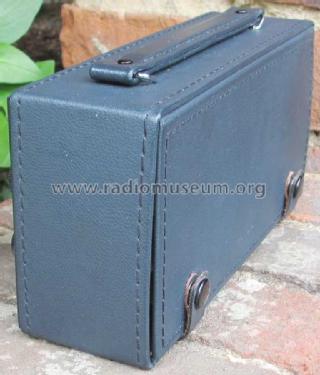

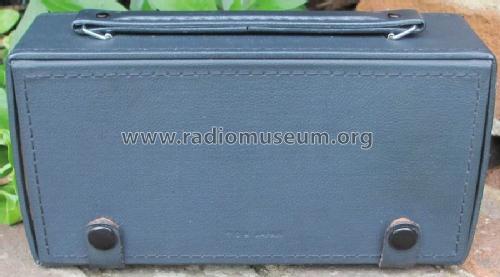

  • Material
  • Leather / canvas / plastic - over other material
  • from Radiomuseum.org
  • Model: 2-Band 7 Transistor 7L-706NE [British station scale] - Sanyo Electric Co. Ltd.;
  • Shape
  • Tablemodel, with any shape - general.
  • Dimensions (WHD)
  • 205 x 110 x 65 mm / 8.1 x 4.3 x 2.6 inch
  • Notes

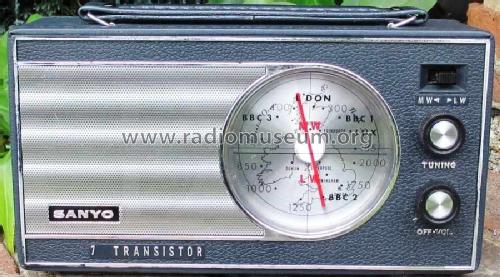

  • Sanyo 7L-706NE 2-Band, 7 Transistor (British radio stations labeled on the scale);
    Earphones jack, made in Japan.
  • Author
  • Model page created by a member from A. See "Data change" for further contributors.
