• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1975 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 231490

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 17

• Semiconductors
• 2SC930 2SC536 2SB324 2SB474 2SB187 1S188 1S553 DS131 DS132 DS442

• Main principle
• Superheterodyne (common); ZF/IF 455/10700 kHz

• Wave bands
• Broadcast, 2 Short Wave plus FM or UHF.

• Power type and voltage
• Line / Batteries (any type) / 120; 200; 240 / D: 4 x 1.5 Volt

• Loudspeaker
• 2 Loudspeakers

• Power out
• 2.7 W (4 W max.)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 4 Band RF Amplifier 2 Audio Channel RP-8251 /SS /AS - Sanyo Electric Co. Ltd.;

• Shape
• Portable set > 8 inch (also usable without mains)

• Dimensions (WHD)
• 236 x 252 x 108 mm / 9.3 x 9.9 x 4.3 inch

• Notes
• • Controls: main volume, tone, tweeter volume, woofer volume.
  • Switches: dial light, loudness, AFC/MW (local/dx); power, radio/phono, voltage selector.
  • Sockets: DIN in/out, stereocast, earphone, AC-input
  • Tune/batt indicator
  • Lightrd film dial system
  • Shoulder belt.

  Each semiconductor type listed once

• Net weight (2.2 lb = 1 kg)
• 2.1 kg / 4 lb 10 oz (4.626 lb)

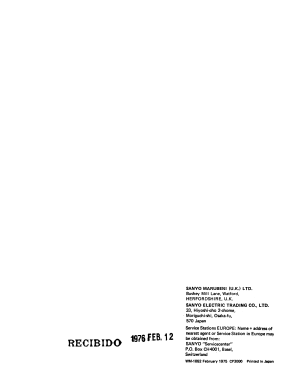

• Literature/Schematics (1)
• -- Original-techn. papers.

• Author
• Model page created by Andreas Schulz. See "Data change" for further contributors.
