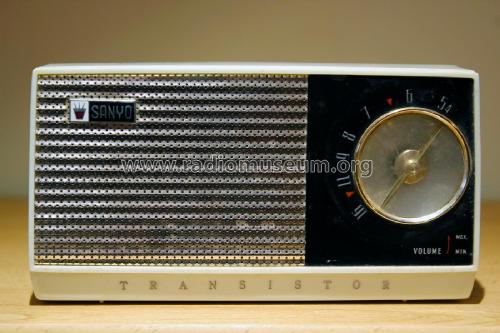

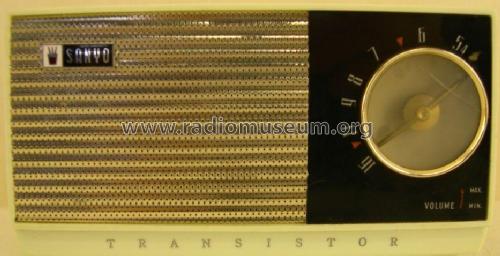

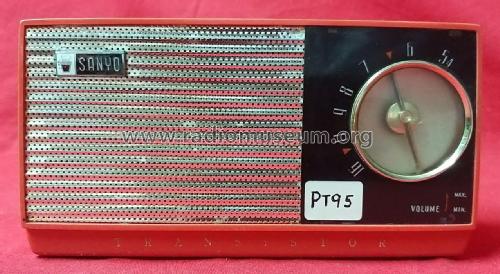

Six Transistor Deluxe 6C-17

Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 1810625) Radio Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 1810623) Radio
Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 263216) Radio Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 281724) Radio
Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 281725) Radio Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 681863) Radio
Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 1774193) Radio Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 1774194) Radio
Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 1774195) Radio Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 681862) Radio
Use red slider bar for more.
Six Transistor Deluxe 6C-17; Sanyo Electric Co. (ID = 1810625) Radio
Sanyo Electric Co.: Six Transistor Deluxe 6C-17 [Radio] ID = 1810625 1400x933
Select picture or schematic to display from thumbnails on the right and click for download.
For model Six Transistor Deluxe 6C-17, Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

Country:  Japan
Manufacturer / Brand:  Sanyo Electric Co. Ltd.; Moriguchi (Osaka)
Year: 1963 ?? Category: Broadcast Receiver - or past WW2 Tuner
Semiconductors (the count is only for transistors) 6: 2SA49 2SA53 2SA52 2SB54 2SB56 2SB56
schematic requested
Main principle Superheterodyne (common); ZF/IF 455 kHz
Tuned circuits 5 AM circuit(s)
Wave bands Broadcast only (MW).
Details
Power type and voltage Dry Batteries / AA: 4x1,5 Volt
Loudspeaker Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)
Power out 0.4 W (unknown quality)
from Radiomuseum.org Model: Six Transistor Deluxe 6C-17 - Sanyo Electric Co. Ltd.;
Material Plastics (no bakelite or catalin)
Shape Very small Portable or Pocket-Set (Handheld) < 8 inch.
Dimensions (WHD) 150 x 80 x 45 mm / 5.9 x 3.1 x 1.8 inch
Notes

2 x Kopfhöreranschluss

1 X Antennenanschluss

Mentioned in Antique Radio Magazine - Italy, Club Antique Radio Magazine (n. 138, luglio-agosto 2017)
Documents regarding this model
  Radio a transistor Made in Japan - I tre oceani di Toshio Iue (Gentile concessione L.Salvatore/ARM) 3798 KB

Model page created by Peter Hoddow. See "Data change" for further contributors.
