• Country
• Japan

• Manufacturer / Brand
• Sanyo Electric Co. Ltd.; Moriguchi (Osaka)

• Year
• 1962 ?

• Category
• Broadcast Receiver - or past WW2 Tuner

• Radiomuseum.org ID
• 257571

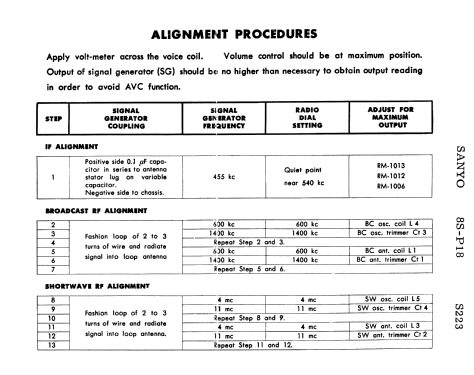

Click on the schematic thumbnail to request the schematic as a free document.

• Number of Transistors
• 8

• Semiconductors
• unknown_tr 2SA92 unknown_tr unknown_tr 2SB188 2SB185 2SB187 2SB187

• Main principle
• Superheterodyne (common); ZF/IF 455 kHz

• Tuned circuits
• 5 AM circuit(s)

• Wave bands
• Broadcast and Short Wave (SW).

• Power type and voltage
• Dry Batteries / 4 x 1,5 Volt

• Loudspeaker
• Permanent Magnet Dynamic (PDyn) Loudspeaker (moving coil)

• Material
• Plastics (no bakelite or catalin)

• from Radiomuseum.org
• Model: 8S-P18 - Sanyo Electric Co. Ltd.;

• Notes

• Tuning Indicator, Fine Tuning, two jacks for earphone & ext. Loudspeaker
  Mixer and IF transistors and demodulator diode inside of IF transformer cans.

• Author
• Model page created by Daniel Rosha. See "Data change" for further contributors.
